$37.66 / EA
manufacturer discounts
learn about discounts
- $33.89 for $300.00+
- $32.28 for $500.00+
- $30.93 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

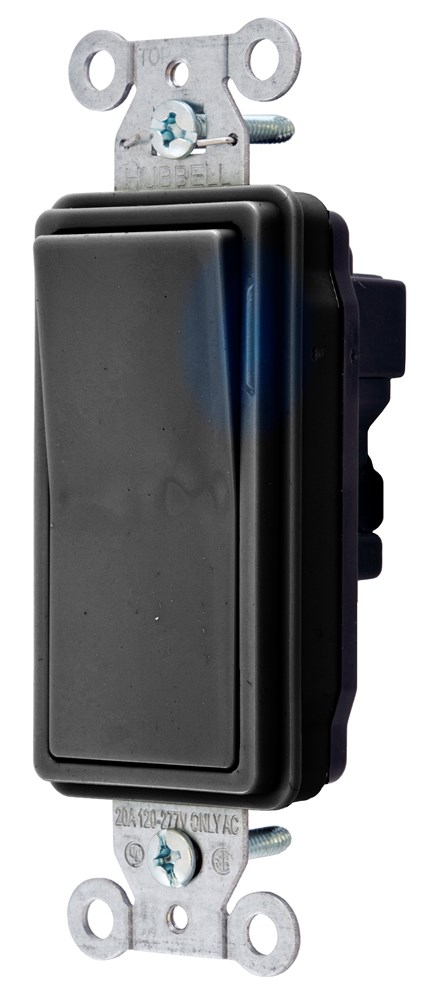

Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches,Illuminated Single Pole, 20A 120/277V AC, Black, North American.
Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches,Illuminated Single Pole, 20A 120/277V AC, Black, North American.
150
- UPC
- 783585186009
- UNSPSC
- 39122226
- Country of Origin
- US
- Action:
- Positive Snap
- Amperage Rating:
- 20 A
- Color:
- Black
- Material:
- Thermoplastic
- Number Of Poles:
- 1
- Size:
- 4.28 in x 1.44 in x 1.54 in
- Type:
- Rocker/Decorator
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 5,540 W
- Action:
- Positive Snap
- Actuator:
- Rocker
- Amperage Rating:
- 20 A
- Catalog Number:
- SNAP2121ILBKNA
- Color:
- Black
- Connection:
- Connectorized
- Contact Configuration:
- 2 Position
- Contact Rating:
- Per UL 20
- Current / Amperage Rating:
- 20 A
- Current Rating:
- 20 A
- Description - Long:
- Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches,Illuminated Single Pole, 20A 120/277V AC, Black, North American.
- Description - Short:
- Switches and Lighting Controls,Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches,Illuminated Single Pole, 20A 120/277V AC, Black, North American.
- EU RoHS Indicator:
- No
- Enclosure:
- None
- Environmental Conditions:
- Indoor Dry unless protected by additional means
- FEATURES - Bullets:
- Steel, zinc plated bridge is corrosion resistant;Thread cleaning captive mounting screw;Self-grounding staple assures continuity to wall box
- Indicator:
- Light On with Load Off
- Indicator(s) Type:
- Blue LED
- Item Type:
- Single Pole Style Line Illuminated Decorator Switch
- Material:
- Thermoplastic
- Mounting:
- Screw Mount
- Number Of Poles:
- 1
- Operating Cycles:
- 50k
- Operating Temperature:
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance:
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
- Product Name:
- SNAP2121ILBKNA
- Series:
- Illuminated
- Size:
- 4.28 in x 1.44 in x 1.54 in
- Standard:
- UL Listed
- Sub Brand:
- AC Decorator Switches
- Temperature Rise - Max.:
- 30°C maximum at rated current
- Type:
- Rocker/Decorator
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 5,540 W
