$34.79 / EA
manufacturer discounts
learn about discounts
- $31.31 for $300.00+
- $29.82 for $500.00+
- $28.58 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

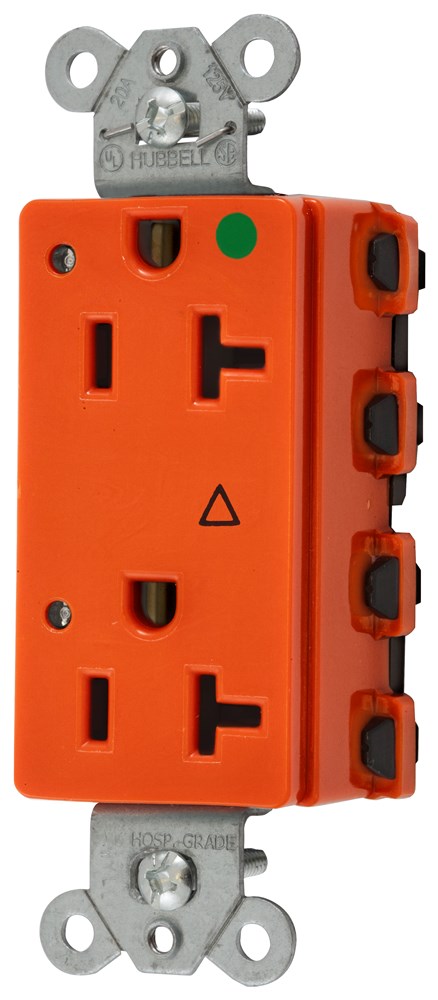

Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect, Hospital Grade, Isolated Ground, LED Indicator, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Nylon, Orange
Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect, Hospital Grade, Isolated Ground, LED Indicator, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Nylon, Orange
150
- UPC
- 783585249285
- UNSPSC
- 39121406
- Country of Origin
- CN
- Amperage Rating:
- 20 A
- Color:
- Orange
- Material:
- Nylon
- Number Of Poles:
- 2
- Size:
- 3.28 in x 1.64 in x 1.1 in
- Type:
- Power Indicating LED
- Voltage Rating:
- 125 V
- Wattage:
- 2,500 W
- Amperage Rating:
- 20 A
- Brand ID:
- WIRING DEVICE-KELLEMS
- Carton Quantity:
- 10
- Color:
- Orange
- Connection:
- Connectorized
- Current / Amperage Rating:
- 20 A
- Current Rating:
- 20 A
- Description - Short:
- Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect, Hospital Grade, Isolated Ground, LED Indicator, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Nylon, Orange
- Dielectric Strength:
- Withstands 2,000V minimum
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Audible SNAP, indicates solid connection;Reduces installation time;Fully insulated design
- FV_Current / Amperage Rating:
- 20 A
- FV_Voltage Rating Description:
- 125 V
- Horsepower - Maximum:
- 1
- Indicator(s) Type:
- Green LED
- Material:
- Nylon
- Material - Mounting Hardware:
- Screw Mounting
- Mounting:
- Screw Mount
- NEMA Rating:
- 5-20R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- OEM Brand Name:
- Hubbell Wiring Device-Kellems
- Performance:
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Phase:
- 1
- Product Name:
- SNAP2182IGL
- Series:
- Hospital Grade
- Size:
- 3.28 in x 1.64 in x 1.1 in
- Standard:
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Sub Brand:
- Straight Blade Devices
- Type:
- Power Indicating LED
- UPC:
- 783585249285
- Voltage Rating:
- 125 V
- Wattage:
- 2,500 W
- Wire Size:
- #12 AWG
