$32.97 / EA
manufacturer discounts
learn about discounts
- $29.67 for $300.00+
- $28.26 for $500.00+
- $27.08 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

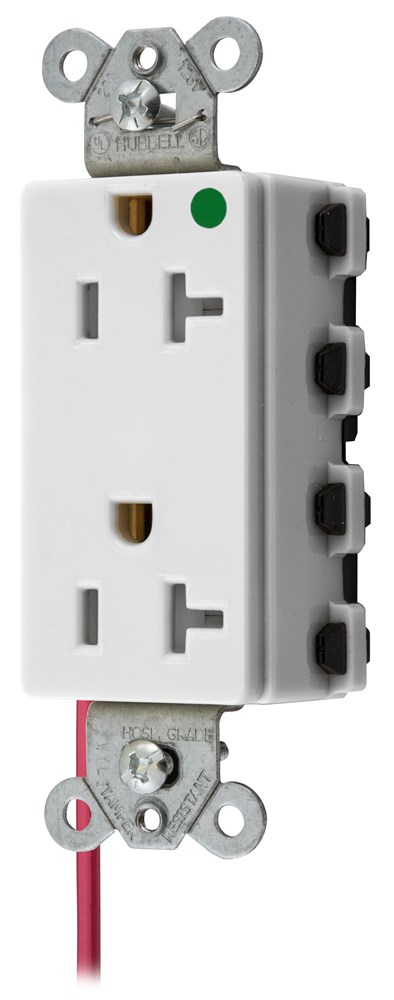

Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect, Hospital Grade, Tamper Resistant, Split Circuit, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Nylon, White, USA
Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect, Hospital Grade, Tamper Resistant, Split Circuit, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Nylon, White, USA
150
- UPC
- 783585552521
- UNSPSC
- 39121406
- Country of Origin
- CN
- Amperage Rating:
- 20 A
- Color:
- White
- Material:
- Nylon
- Number Of Poles:
- 2
- Size:
- 3.28 in x 1.64 in x 1.1 in
- Type:
- Tamper-Resistant, Split Circuit
- Voltage Rating:
- 125 V
- Wattage:
- 2,500 W
- Amperage Rating:
- 20 A
- Brand ID:
- WIRING DEVICE-KELLEMS
- Carton Quantity:
- 10
- Catalog Number:
- SNAP2182WSCTRA
- Color:
- White
- Current / Amperage Rating:
- 20 A
- Current Rating:
- 20 A
- Description - Long:
- Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect, Hospital Grade, Tamper Resistant, Split Circuit, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Nylon, White, USA
- Description - Short:
- Straight Blade Devices, Receptacles, Style Line Decorator, SNAPConnect, Hospital Grade, Tamper Resistant, Split Circuit, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, Nylon, White, USA
- Dielectric Strength:
- Withstands 2,000V minimum
- EU RoHS Indicator:
- Contact Manufacturer
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Audible SNAP, indicates solid connection;Reduces installation time;Tamper-Resistant, Split Circuit;Assembled in USA
- FV_Current / Amperage Rating:
- 20 A
- FV_Voltage Rating Description:
- 125 V
- Horsepower - Maximum:
- 1
- Item Type:
- Style Line Decorator
- Material:
- Nylon
- NEMA Rating:
- 5-20R
- Number Of Poles:
- 2
- Number Of Wires:
- 3
- OEM Brand Name:
- Hubbell Wiring Device-Kellems
- Performance:
- Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
- Phase:
- 1
- Product Name:
- SNAP2182WSCTRA
- Series:
- Hospital Grade
- Size:
- 3.28 in x 1.64 in x 1.1 in
- Standard:
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Type:
- Tamper-Resistant, Split Circuit
- UPC:
- 783585552521
- Voltage Rating:
- 125 V
- Voltage Rating Description:
- 125 V
- Wattage:
- 2,500 W
- Wire Size:
- #12 AWG
