SSBAS23
SKU: SSBAS23
MPN: SSBAS23
Key specs
View all- Type
- EDKB Series 4 Circuit Selector Switch Assembly
Description
Product overview

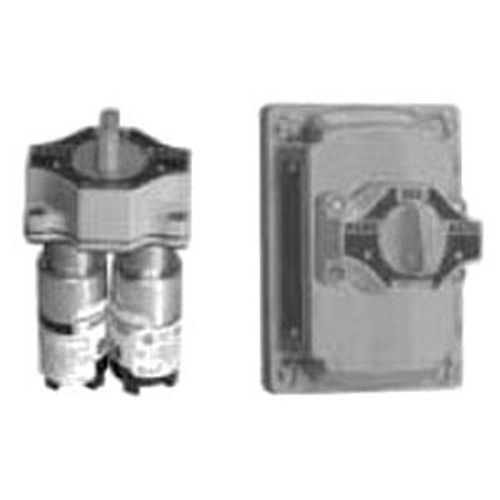

Contender EDKB Series 4 Circuit Selector Switch Assembly, Number Of Steps: 3, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN NPSM, Operation: Momentary, Material: Malleable Iron Body And Cover, Standard: Class I, Division 1, Groups C, D Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Contender EDKB Series 4 Circuit Selector Switch Assembly, Number Of Steps: 3, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN NPSM, Operation: Momentary, Material: Malleable Iron Body And Cover, Standard: Class I, Division 1, Groups C, D Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Manufacturer highlights
Additional manufacturer notes
- Short name
- APP
- Feed description
- APP SSBAS23 3 POS 4 MOMENTARY RIGHT
- Invoice description
- 3 POS 4 MOMENTARY RIGHT
Specifications
- UPC
- 781381634410
- UNSPSC
- 39122217
- Country of Origin
- MX
- Type
- EDKB Series 4 Circuit Selector Switch Assembly
- Contact Rating
- 10 AMP At 600 VAC
- Enclosure
- NEMA 3, 7CD, 9EFG
- Mounting
- Surface Mount With 1/2 IN NPSM
- Number Of Steps
- 3
- Standard
- Class I, Division 1, Groups C, D Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III
- Sub Brand
- Contender
- Type
- EDKB Series 4 Circuit Selector Switch Assembly
