$49.32 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

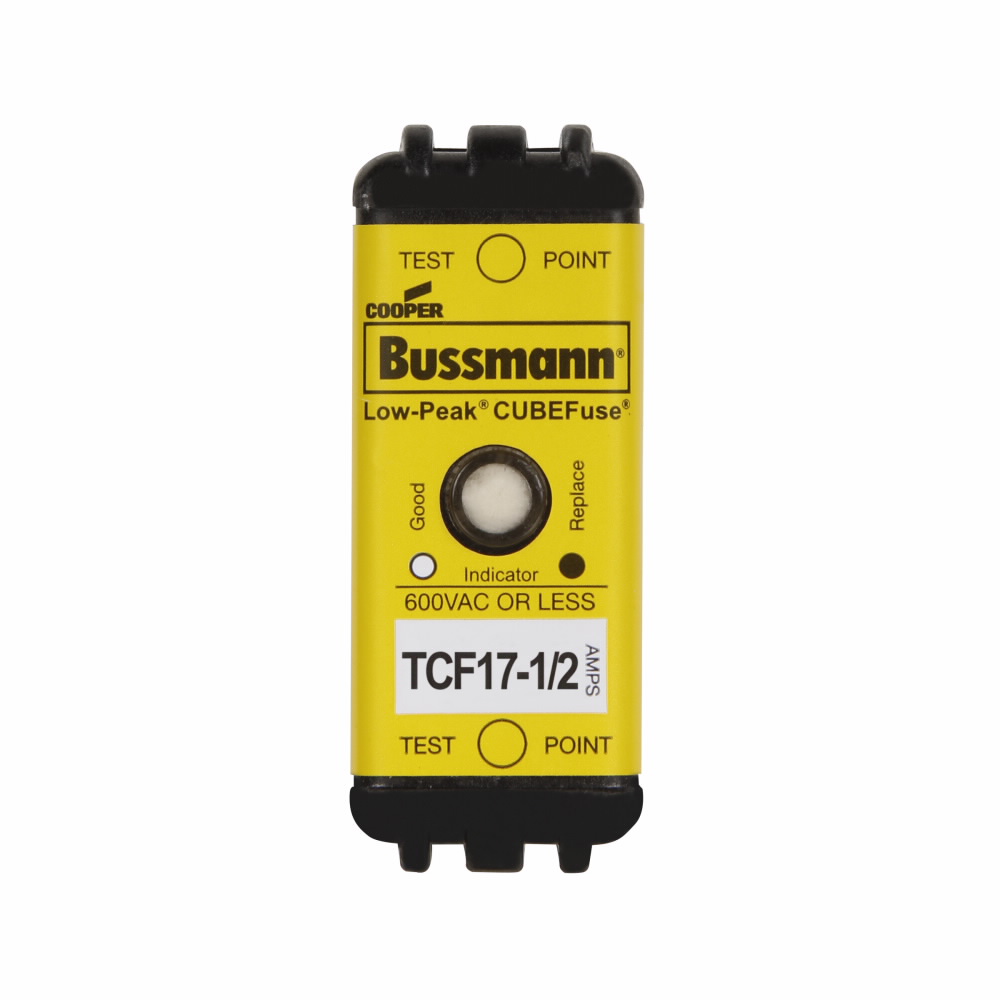

Eaton Bussmann series TCF fuse, 17.5 A, 60 Hz, 50 Hz, Dual, CF, Black, With Indicator, Blade end, Time delay, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, 35 mm DIN rail,Chassis, 600 V, 300 Vdc
Eaton Bussmann series TCF fuse, 17.5 A, 60 Hz, 50 Hz, Dual, CF, Black, With Indicator, Blade end, Time delay, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, 35 mm DIN rail,Chassis, 600 V, 300 Vdc
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared t...150
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution � requiring up to 70% less space when combined with its unique fuse holder or UL� 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
- UPC
- 051712615006
- UNSPSC
- 39121606
- Country of Origin
- CN
- Amperage Rating:
- 17.5 A
- Material:
- Glass filled PES
- Type:
- Fuse
- Voltage Rating:
- 600//300 VAC//VDC
- Amperage Rating:
- 17.5 A
- Class:
- Class CF
- Connection:
- Blade end
- Dimensions:
- 1.8800 IN X 1.0000 IN X 1.7500 IN
- Element:
- Dual
- Interrupt Rating:
- 300 kAIC at 600 Vac100 kAIC at 300 Vdc
- Material:
- Glass filled PES
- Mounting:
- 35 mm DIN Rail, Chassis
- Response Time:
- 10 S at 500%
- Standard:
- CSA Certified ,UL Listed,CE Marked
- Sub Brand:
- Bussmann Series
- Type:
- Fuse
- Voltage Rating:
- 600//300 VAC//VDC
LKS-100
$33.38 /ea
Eaton Bussmann series LKS fuse link,600V,100A,Class H, K5
| Attributed Data | Included |
|---|---|
| Class | Class HClass K5 Yes |
| Dimensions | 0.6250 IN X 0.6880 IN X 5.1250 IN Yes |
| Standard | RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse link Yes |
LKS-150
$56.42 /ea
Eaton Bussmann series LKS fuse link,600V,150A,Class H, K5
| Attributed Data | Included |
|---|---|
| Class | Class HClass K5 Yes |
| Dimensions | 0.0010 IN X 0.0010 IN X 0.0010 IN Yes |
| Standard | RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse link Yes |
LKS-200
$55.82 /ea
Eaton Bussmann series LKS fuse link,600V,200A,Class H, K5
| Attributed Data | Included |
|---|---|
| Class | Class HClass K5 Yes |
| Dimensions | 0.0010 IN X 0.0010 IN X 0.0010 IN Yes |
| Standard | RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Fuse link Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
LKS-100
Eaton Bussmann series LKS fuse link,600V,100A,Class H, K5
$33.38 / EA
|
LKS-150
Eaton Bussmann series LKS fuse link,600V,150A,Class H, K5
$56.42 / EA
|
LKS-200
Eaton Bussmann series LKS fuse link,600V,200A,Class H, K5
$55.82 / EA
|
|
| Attributed Data | |||
| Amperage Rating | 100 A 100 A | 150 A 150 A | 200 A 200 A |
| Class | Class HClass K5 Class HClass K5 | ||
| Dimensions | 0.0010 IN X 0.0010 IN X 0.0010 IN 0.0010 IN X 0.0010 IN X 0.0010 IN | 0.6250 IN X 0.6880 IN X 5.1250 IN 0.6250 IN X 0.6880 IN X 5.1250 IN | |
| Standard | RoHS Compliant RoHS Compliant | ||
| Sub Brand | Bussmann Series Bussmann Series | ||
| Type | Fuse link Fuse link | ||
| Voltage Rating | 600 V 600 V | ||
