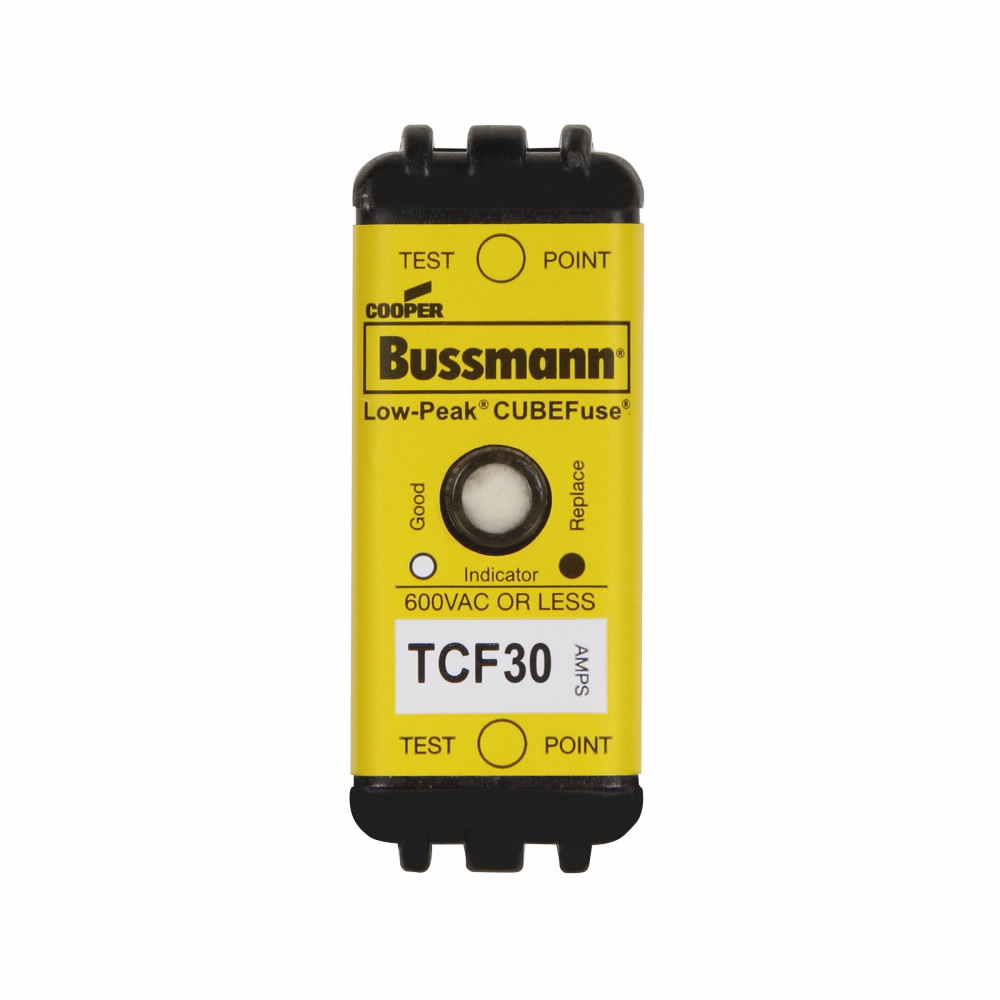

TCF30
SKU: TCF30
MPN: TCF30
Key specs
View all- Amperage Rating
- 30 A
- Material
- Glass filled PES
- Size
- 1.88 In Length X 0.75 In Height
- Type
- Fuse
- Voltage Rating
- 600//300 VAC//VDC
Description
Product overview
Eaton Bussmann series TCF fuse, 30 A, 60 Hz, 50 Hz, Dual, Class CF, Black, With Indicator, Blade end, Class CF,Time delay, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Glass filled PES, 600 V, 300 Vdc, TCFH30N, CCP2-3-30CF
Eaton Bussmann series TCF fuse, 30 A, 60 Hz, 50 Hz, Dual, Class CF, Black, With Indicator, Blade end, Class CF,Time delay, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Glass filled PES, 600 V, 300 Vdc, TCFH30N, CCP2-3-30CF
Manufacturer highlights
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution ' requiring...
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution ' requiring up to 70% less space when combined with its unique fuse holder or UL' 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
Additional manufacturer notes
- Short name
- BUSS
- Feed description
- BUSS TCF30 CUBEFUSE, TCF 30A IND
- Invoice description
- CUBEFUSE, TCF 30A IND
Specifications
- UPC
- 051712615037
- UNSPSC
- 39121606
- Country of Origin
- CN
- Amperage Rating
- 30 A
- Material
- Glass filled PES
- Size
- 1.88 In Length X 0.75 In Height
- Type
- Fuse
- Voltage Rating
- 600//300 VAC//VDC
- Amperage Rating
- 30 A
- Class
- Class CF
- Connection
- Blade end
- Dimensions
- 1.8800 IN X 0.7500 IN X 1.7500 IN
- Element
- Dual
- Interrupt Rating
- 300 kAIC at 600 Vac100 kAIC at 300 Vdc
- Material
- Glass filled PES
- Mounting
- 35 mm DIN Rail, Chassis
- Response Time
- 10 S at 500%
- Size
- 1.88 In Length X 0.75 In Height
- Standard
- CSA Certified ,UL Listed,RoHS Compliant
- Sub Brand
- Bussmann Series
- Type
- Fuse
- Voltage Rating
- 600//300 VAC//VDC
