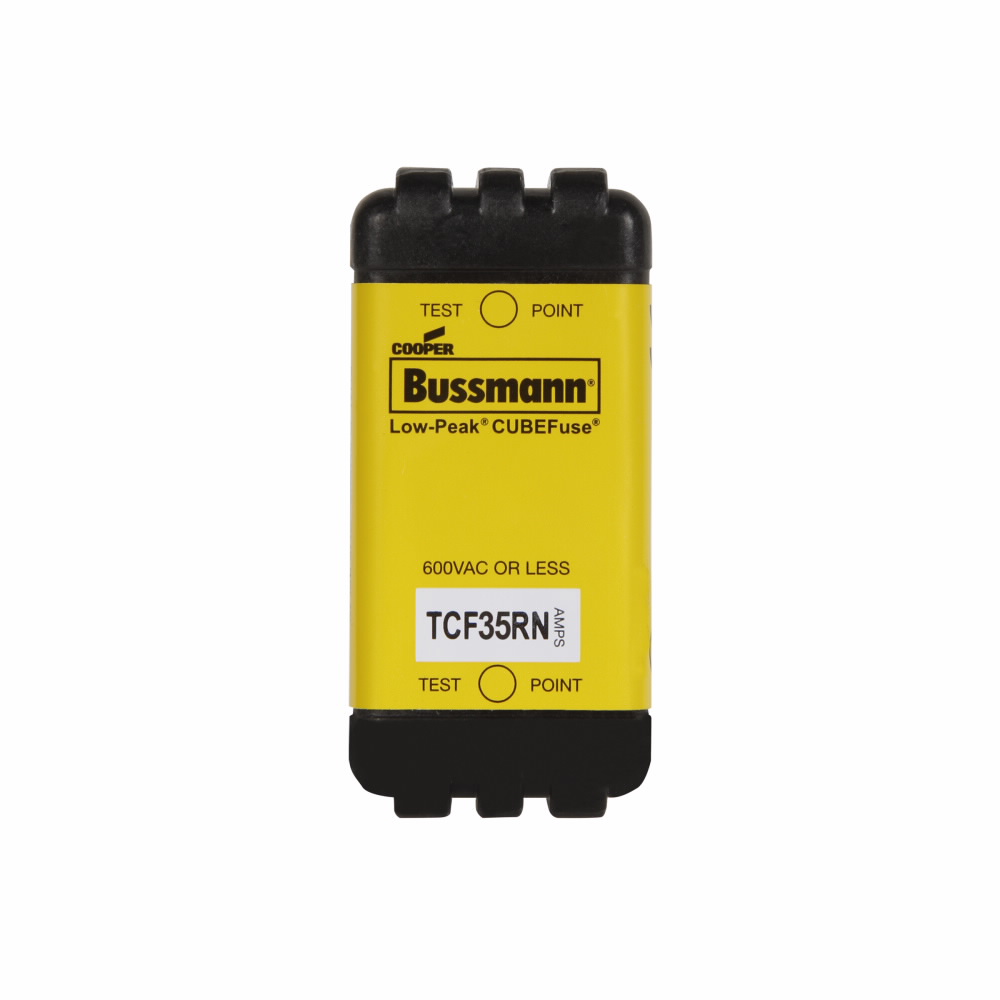

Eaton Bussmann series TCF fuse, 35 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay,Class CF, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc
Eaton Bussmann series TCF fuse, 35 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay,Class CF, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

TCF35RN

Manufacturer
Cooper Bussmann

$71.06 / EA

In stock (0)
Lead time: over 7 days
may be longer on small orders

Eaton Bussmann series TCF fuse, 35 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay,Class CF, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc

Eaton Bussmann series TCF fuse, 35 A, 60 Hz, 50 Hz, Dual, CF, Black, Non-indicating, Blade end, Time delay,Class CF, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC at 300 Vdc, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc

The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared t...150

The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution � requiring up to 70% less space when combined with its unique fuse holder or UL� 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.

UPC
051712220972
UNSPSC
39121606
Country of Origin
CN
Amperage Rating:
35 A
Material:
Glass filled PES
Type:
Fuse
Voltage Rating:
600//300 VAC//VDC
Amperage Rating:
35 A
Class:
Class CF
Connection:
Blade end
Dimensions:
2.1300 IN X 1.0000 IN X 1.9000 IN
Element:
Dual
Interrupt Rating:
300 kAIC at 600 Vac100 kAIC at 300 Vdc
Material:
Glass filled PES
Mounting:
35 mm Din Rail, chassis
Response Time:
10 S at 500%
Standard:
CSA Certified ,UL Listed,RoHS Compliant,CE Marked
Sub Brand:
Bussmann Series
Type:
Fuse
Voltage Rating:
600//300 VAC//VDC
