$78.18 / EA
Local stock: 0
Lead time:
1
-
2
working days

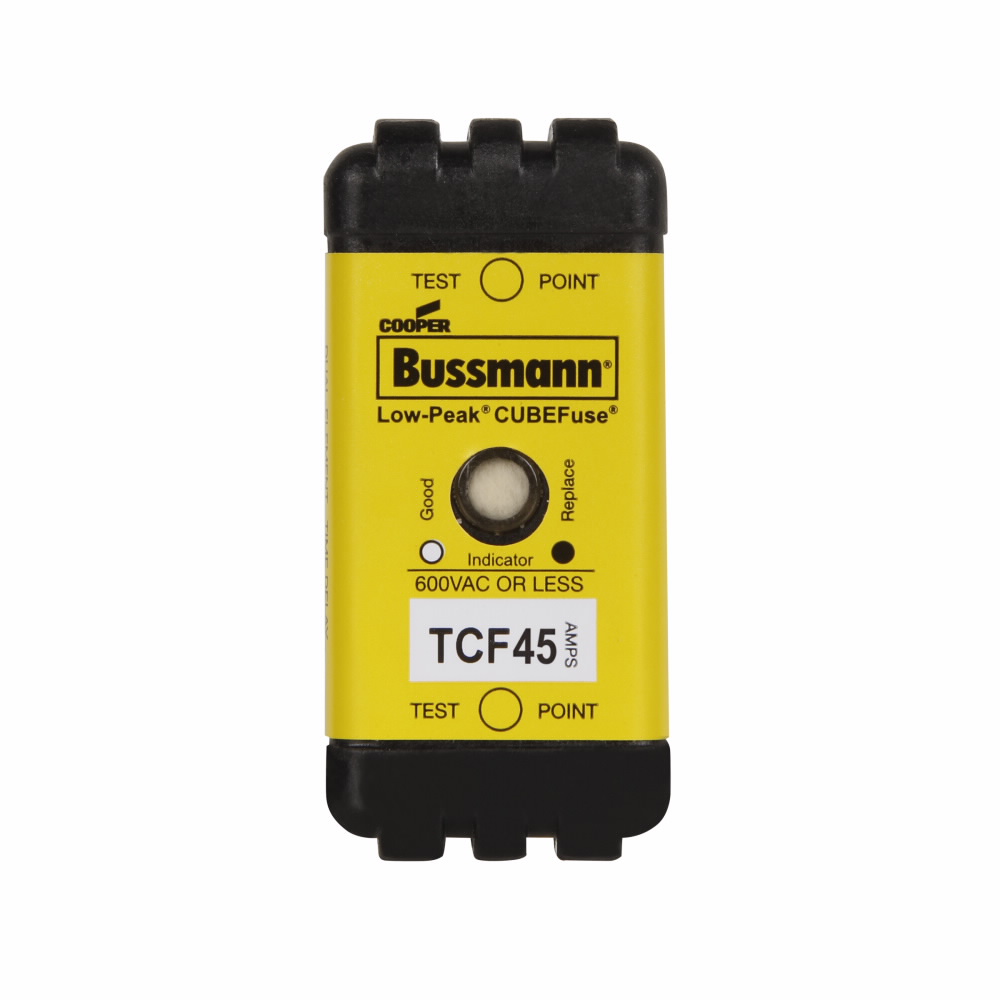

Eaton Bussmann series TCF fuse, 45 A, 60 Hz, 50 Hz, Dual, CF, Black, With Indicator, Blade end, Time delay,Class CF, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc
Eaton Bussmann series TCF fuse, 45 A, 60 Hz, 50 Hz, Dual, CF, Black, With Indicator, Blade end, Time delay,Class CF, 10 sec at 500%, 100 kAIC at 300 Vdc,300 kAIC at 600 V, Glass filled PES, Chassis,35 mm DIN rail, 600 V, 300 Vdc
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared t...150
The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution � requiring up to 70% less space when combined with its unique fuse holder or UL� 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
- UPC
- 051712615068
- UNSPSC
- 39121606
- Country of Origin
- CN
- Amperage Rating:
- 45 A
- Material:
- Glass filled PES
- Size:
- 2.13 In Length X 1.00 In Height
- Type:
- Fuse
- Voltage Rating:
- 600//300 VAC//VDC
- Amperage Rating:
- 45 A
- Class:
- Class CF
- Connection:
- Blade end
- Dimensions:
- 2.1300 IN X 1.0000 IN X 1.9000 IN
- Element:
- Dual
- Interrupt Rating:
- 300 kAIC at 600 Vac100 kAIC at 300 Vdc
- Material:
- Glass filled PES
- Mounting:
- 35 mm Din Rail, chassis
- Response Time:
- 10 S at 500%
- Size:
- 2.13 In Length X 1.00 In Height
- Standard:
- CSA Certified ,UL Listed,CE Marked,RoHS Compliant
- Sub Brand:
- Bussmann Series
- Type:
- Fuse
- Voltage Rating:
- 600//300 VAC//VDC
