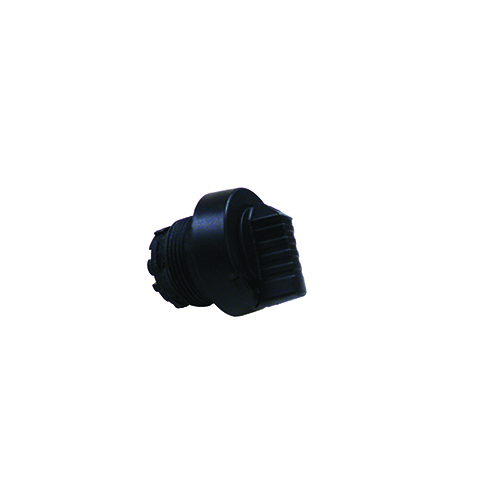

Appleton Electric Co UK0R Push Button Switch product image

Appleton Electric Co UK0R Push Button Switch product image view 2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

UK0R

SKU: UK0R

MPN: UK0R

Purchase options

$86.30 / EA

manufacturer discounts
learn about discounts

$83.21 for $1,000.00+
$73.97 for $2,000.00+
$70.27 for $3,000.00+

Available to order

Lead time: 3-4 working days

Lead time: 3-4 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Contact Rating: Rated operating voltage (Ue): 500 Vac - 110 Vdc / Switching capacity: AC12: 16 Amp/400 Vac / AC14: 10 Amp/400 Vac / AC15: 6 Amp/500 Vac / DC13: 2 Amp/24 Vdc and 1 Amp/110 Vdc
Enclosure: Body: polyamide / Lens: polycarbonate
Operating Cycles: 100,000 hours
Sub Brand: Unicode 2

Description

Product overview

Selector Switch Actuator, Type Knob Lever, Operation Type Spring Return, Number of Positions 3, Throw Left-Center-Right, Body Material Thermosetting Plastic, Enclosure IP66, IK10, Mounting Type Rail Mount, Weight 0.084 Lb

Manufacturer highlights

Additional manufacturer notes

Short name: APP
Feed description: APP UK0R ACTUATOR 3-POS SEL SW
Invoice description: ACTUATOR 3-POS SEL SW

Specifications

UPC: 781381264631

UNSPSC: 39122216

Country of Origin: FR

Contact Rating: Rated operating voltage (Ue): 500 Vac - 110 Vdc / Switching capacity: AC12: 16 Amp/400 Vac / AC14: 10 Amp/400 Vac / AC15: 6 Amp/500 Vac / DC13: 2 Amp/24 Vdc and 1 Amp/110 Vdc

Enclosure: Body: polyamide / Lens: polycarbonate

Operating Cycles: 100,000 hours

Sub Brand: Unicode 2
