UT10-22
SKU: UT10-22
MPN: UT10-22
Key specs
View all- Type

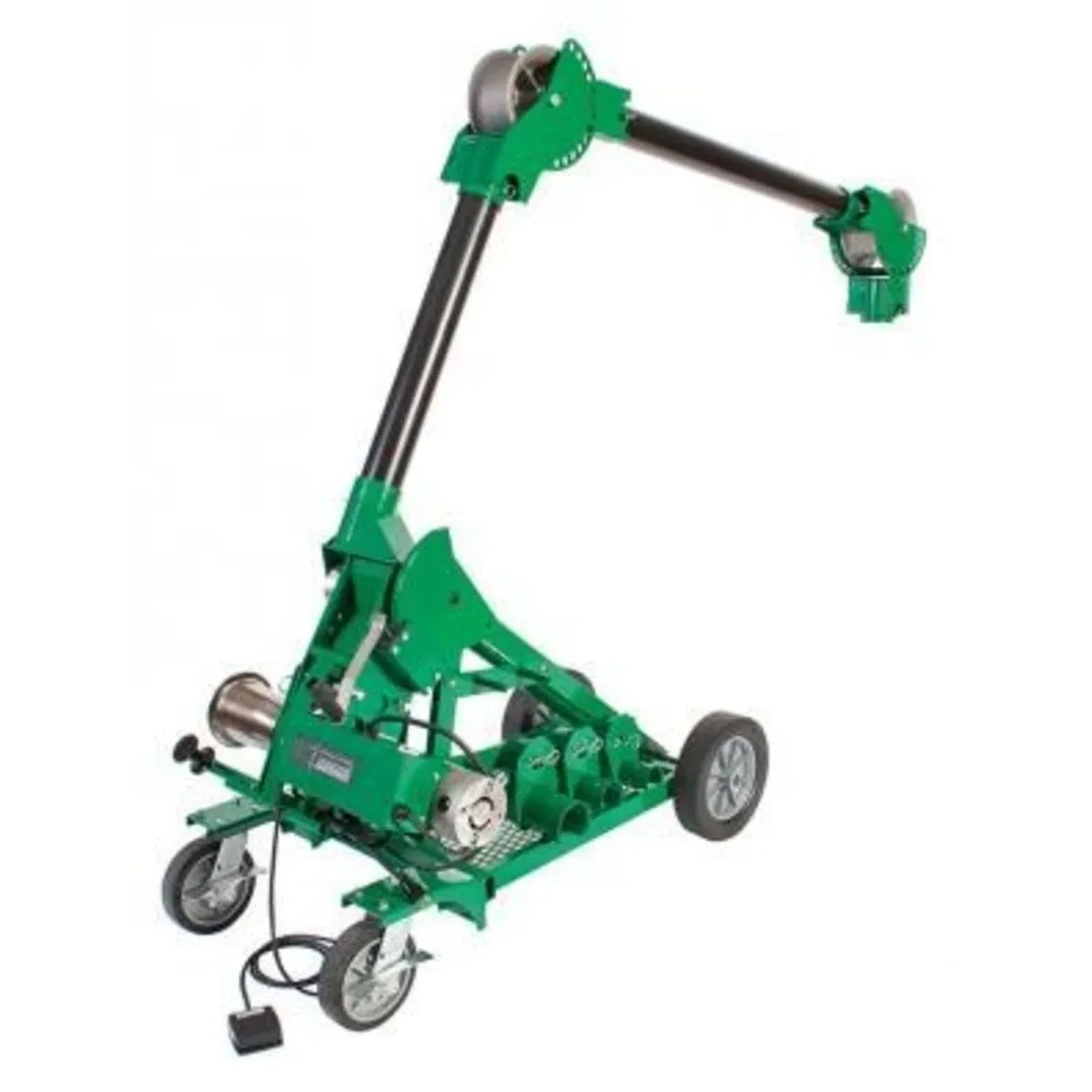

- Ultra Tugger® 10,000 pound cable puller
Description
Product overview
2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range. Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB. Easy control features for increased productivity. On-board force gauge provides visual communication of pulling force and speed changes. Quick speed change from high-speed to low-speed by simply double tapping foot pedal. Removable foot pedal for convenience.
2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range. Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB. Easy control features for increased productivity. On-board force gauge provides visual communication of pulling force and speed changes. Quick speed change from high-speed to low-speed by simply double tapping foot pedal. Removable foot pedal for convenience.
Manufacturer highlights
Additional manufacturer notes
- Short name
- GRN
- Feed description
- GRN UT10-22 PULLER (UT10-22)
- Label description
- (220 V) Puller Assembly
- Invoice description
- PULLER (UT10-22)
Specifications
- UPC
- 783310008293
- UNSPSC
- 27111712
- Country of Origin
- US
- Type
- Ultra Tugger® 10,000 pound cable puller
- Capacity
- 10,000 pound max
- Type
- Ultra Tugger® 10,000 pound cable puller
- Manufacturer keywords
- UT10-22,'00829,UT1022
