$4,833.42 / EA
manufacturer discounts
learn about discounts
- $4,660.80 for $1,000.00+
- $4,142.93 for $2,000.00+
- $3,935.79 for $3,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

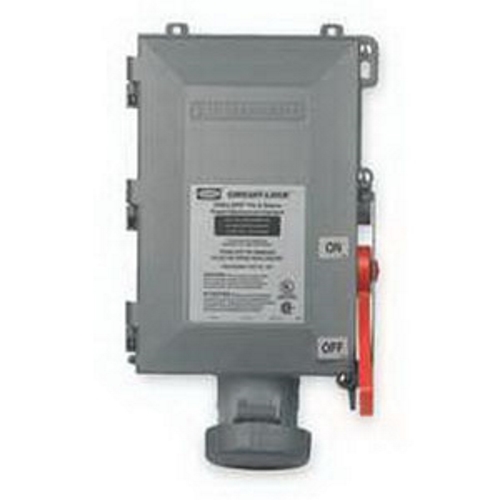

Fused WSRD Series Interlocked Receptacle With Enclosure, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50/60 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of
Fused WSRD Series Interlocked Receptacle With Enclosure, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50/60 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of
150
- UPC
- 781381090483
- UNSPSC
- 39121406
- Country of Origin
- US
- Amperage Rating:
- 60 A
- Material:
- Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Stainless Steel Enclosure
- Number Of Poles:
- 4
- Type:
- Fused WSRD Series Interlocked Receptacle With Enclosure
- Voltage Rating:
- 600//250 VAC//VDC
- Amperage Rating:
- 60 A
- Material:
- Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Stainless Steel Enclosure
- Mounting:
- Surface Mount
- NEMA Rating:
- NEMA 3, 3R, 4, 4X, 12
- Number Of Poles:
- 4
- Number Of Wires:
- 3
- Phase:
- 3
- Standard:
- UL 98, UL 50E, UL 1682, UL 1686; UL Listed: E145917, E160652; CSA Standard: C22.2 No.4, C22.2 No. 182.1; CSA Certified: 025875
- Type:
- Fused WSRD Series Interlocked Receptacle With Enclosure
- Voltage Rating:
- 600//250 VAC//VDC
- Wire Size:
- 6 - 2 AWG

WD2S1034
$9,850.47 /ea
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 100 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure Material Epoxy Powder Coated, Mounting Mounting Feet, Size 12 Inch W x 6.63 Inch D x 20 Inch H, Approval UL, CSA, Application Individual Motor Control Switch

WD2S3034
$5,045.99 /ea
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 30 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure Material Epoxy Powder Coated, Mounting Mounting Feet, Size 12 Inch W x 6.63 Inch Depth x 20 Inch Height, Approval UL, CSA, Application Individual Motor Control Switch

WD2S6034
$5,245.02 /ea
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 60 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure Material Epoxy Powder Coated, Mounting Mounting Feet, Size 12 Inch W x 6.63 Inch Depth x 20 Inch Height, Approval UL, CSA, Application Individual Motor Control Switch
Product Image | |||
---|---|---|---|
WD2S1034
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 100 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure...
$9,850.47 / EA
|
WD2S3034
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 30 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure...
$5,045.99 / EA
|
WD2S6034
Load Disconnect Switch, Constructional Feature Explosionproof, Voltage Rating 600 VAC, Current Rating 60 Ampere, Fuse Provision Non Fusible, Enclosure Class I Div 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/4/4X/12, Enclosure...
$5,245.02 / EA
|
|
