$516.43 / EA
Local stock: 0
Lead time:
over 7 working days

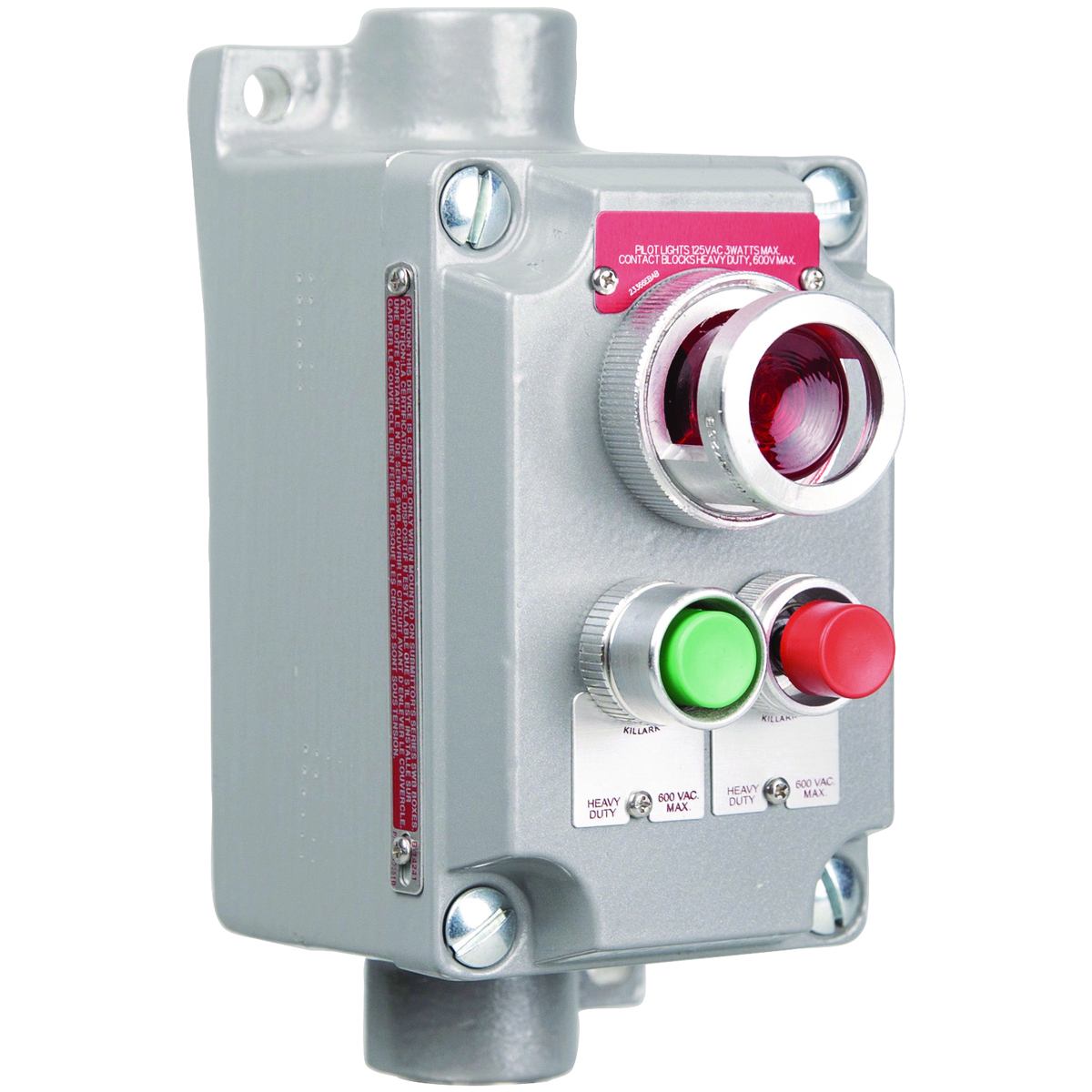

XCS SERIES - ALUMINUM FEED-THRU MOMENTARY CONTACT TWO MINI PUSH BUTTONAND 120V PILOT LIGHT CONTROL STATION - GREEN BUTTON WITH "START"NAMEPLATE - RED BUTTON WITH "STOP" NAMEPLATE - RED LENS WITH NAMEPLATETO BE SPECIFIED - HUB SIZE 1/2 INCH - 1NO/1NC CONTACT RATING
XCS SERIES - ALUMINUM FEED-THRU MOMENTARY CONTACT TWO MINI PUSH BUTTONAND 120V PILOT LIGHT CONTROL STATION - GREEN BUTTON WITH "START"NAMEPLATE - RED BUTTON WITH "STOP" NAMEPLATE - RED LENS WITH NAMEPLATETO BE SPECIFIED - HUB SIZE 1/2 INCH - 1NO/1NC CONTACT RATING
150
- UPC
- 783936891293
- UNSPSC
- 39122216
- Country of Origin
- US
- Action:
- SP
- Amperage Rating:
- 25m/275m/550m/2.5 A
- Number Of Poles:
- 2
- Size:
- 5-7/8" H x 3" W x 3-5/16" D
- Type:
- Aluminum box and cover with pilot light and two mini push buttons
- Voltage Rating:
- 120/600 VAC
- Wattage:
- 3 W
- Action:
- SP
- Actuator:
- Pilot light and momentary push buttons
- Amperage Rating:
- 25m/275m/550m/2.5 A
- Contact Configuration:
- 1-NO/1-NC
- Contact Rating:
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Enclosure:
- Aluminum enclosure
- Environmental Conditions:
- Hazardous locations
- Number Of Poles:
- 2
- Size:
- 5-7/8" H x 3" W x 3-5/16" D
- Standard:
- UL, CSA
- Type:
- Aluminum box and cover with pilot light and two mini push buttons
- Voltage Rating:
- 120/600 VAC
- Wattage:
- 3 W
