$360.07 / EA
Local stock: 0
Lead time:
over 7 working days
XCS SERIES - ALUMINUM FEED-THRU MOMENTARY CONTACT SINGLE PUSH BUTTONCONTROL STATION - BLACK BUTTON WITH NAMEPLATE TO BE SPECIFIED - HUB SIZE3/4 INCH - 1NO/1NC CONTACT RATING
XCS SERIES - ALUMINUM FEED-THRU MOMENTARY CONTACT SINGLE PUSH BUTTONCONTROL STATION - BLACK BUTTON WITH NAMEPLATE TO BE SPECIFIED - HUB SIZE3/4 INCH - 1NO/1NC CONTACT RATING
150
- UPC
- 783936891842
- UNSPSC
- 39122216
- Country of Origin
- US
- Action:
- SP
- Amperage Rating:
- 275m/550m/2.5 A
- Number Of Poles:
- 1
- Size:
- 5-7/8" H x 3" W x 3-5/16" D
- Type:
- Aluminum box and cover with push button
- Voltage Rating:
- 600 VAC
- Action:
- SP
- Actuator:
- Momentary push button
- Amperage Rating:
- 275m/550m/2.5 A
- Contact Configuration:
- 1-NO/1-NC
- Contact Rating:
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Enclosure:
- Aluminum enclosure
- Environmental Conditions:
- Hazardous locations
- Number Of Poles:
- 1
- Size:
- 5-7/8" H x 3" W x 3-5/16" D
- Standard:
- UL, CSA
- Type:
- Aluminum box and cover with push button
- Voltage Rating:
- 600 VAC
Recently Viewed
-
XCS-5B3
KILLARK ELECTRICAL PRODUCTS
XCS SERIES - ALUMINUM FEED-THRU MOMENTARY CONTACT SINGLE PUSH BUTTONCONTROL STATION - BLACK BUTTON WITH NAMEPLATE TO BE SPECIFIED - HUB SIZE3/4 INCH -...
See more details -

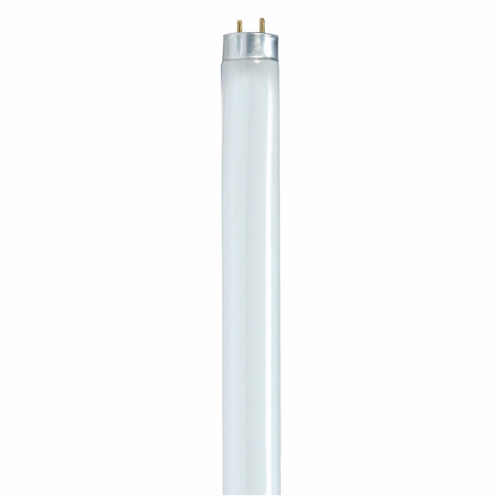

S8439
SATCO PRODUCTS
Fluorescent T8 Linear Reduced Wattage Lamp, Designation: F32/25WT8/835/ES/ENV, 25 WTT, T8 Shape, G13 Medium Bi Pin Base, 24000 HR, Lumens: 2400 LM Ini...
See more details -
TL1F7NP
SIEMENS INDUSTRY, INC.
Siemens Low Voltage Talon Temporary Power Outlet Panel. Receptacles included 14-50R rated 125/250V (50A) GFCI protected, 5-20R2GFI rated 125V (20A), ....
See more details -

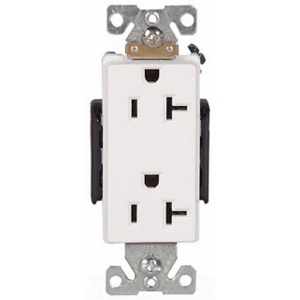

6362W
