Products
$50.37 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

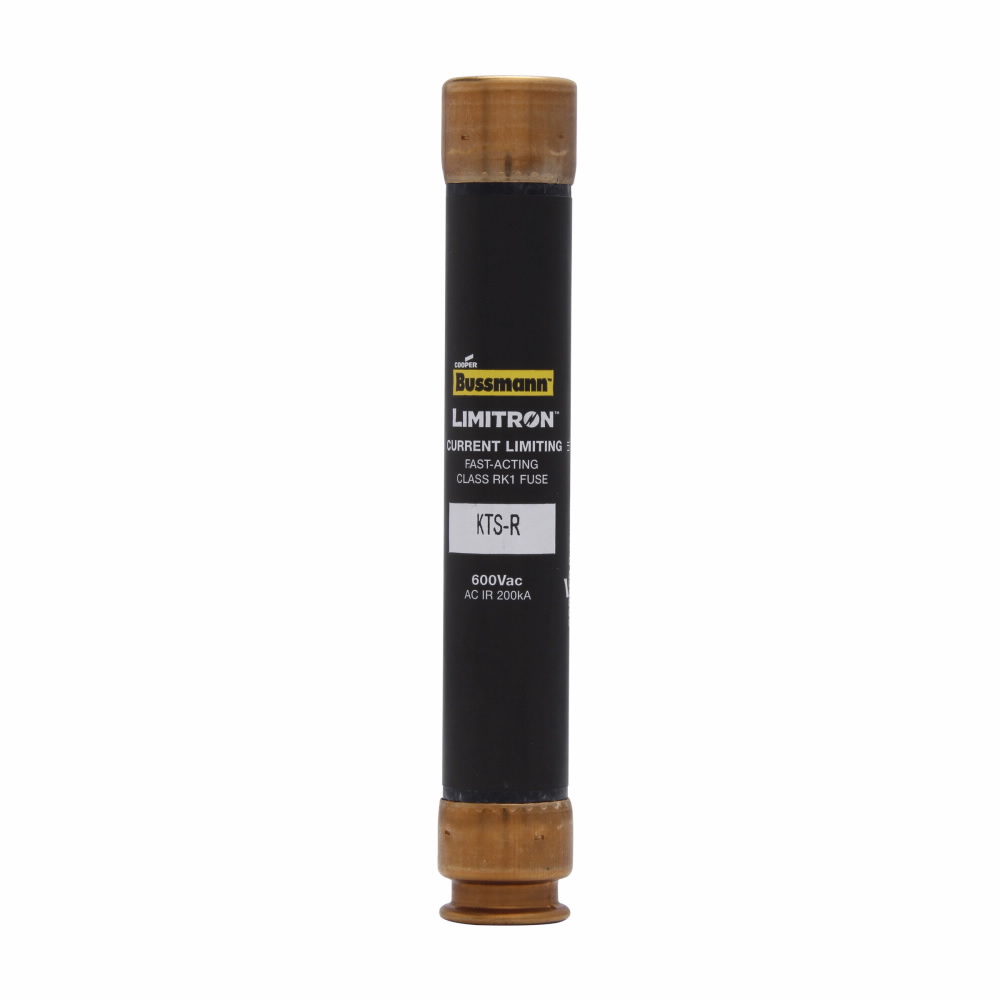

Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 10 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 10 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element,...150
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
- UPC
- 051712417037
- UNSPSC
- 39121626
- Country of Origin
- MX
- Amperage Rating:
- 10 A
- Material:
- Melamine glass tube
- Size:
- 0.81 In Diameter X 5.00 In Length
- Type:
- Fuse
- Voltage Rating:
- 600 V
- Amperage Rating:
- 10 A
- Class:
- RK-1
- Connection:
- Ferrule end x ferrule end
- Dimensions:
- 0.8000 IN X 0.8000 IN X 5.0000 IN
- Element:
- Single
- Interrupt Rating:
- 200 kAIC at 600 Vac
- Material:
- Melamine glass tube
- Size:
- 0.81 In Diameter X 5.00 In Length
- Standard:
- CE Marked
- Sub Brand:
- Bussmann Series
- Type:
- Fuse
- Voltage Rating:
- 600 V
Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 10 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube,...
$50.37 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$50.87 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 25 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 25 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element,...150
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
- UPC
- 051712417068
- UNSPSC
- 39121626
- Country of Origin
- MX
- Amperage Rating:
- 25 A
- Material:
- Melamine glass tube
- Size:
- 0.81 In Diameter X 5.00 In Length
- Type:
- Fuse
- Voltage Rating:
- 600 V
- Amperage Rating:
- 25 A
- Class:
- RK-1
- Connection:
- Ferrule end x ferrule end
- Dimensions:
- 0.8000 IN X 0.8000 IN X 5.0000 IN
- Element:
- Single
- Interrupt Rating:
- 200 kAIC at 600 Vac
- Material:
- Melamine glass tube
- Size:
- 0.81 In Diameter X 5.00 In Length
- Standard:
- CE Marked
- Sub Brand:
- Bussmann Series
- Type:
- Fuse
- Voltage Rating:
- 600 V
Eaton Bussmann series KTS-R fuse, LIMITRON Fast-acting fuse, 70/30 brass end cap, Panelboards, 25 A, 1, Class RK1, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Melamine glass tube,...
$50.87 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$6,122.79 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
250A 15500V Clip-Lock Fuse for Transformer and Feeder Protection
250A 15500V Clip-Lock Fuse for Transformer and Feeder Protection
150
- UPC
- 051712607773
- UNSPSC
- 39121626
- Country of Origin
- DO
250A 15500V Clip-Lock Fuse for Transformer and Feeder Protection
$6,122.79 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$7,015.73 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
300A 15500V Clip-Lock Fuse for Transformer and Feeder Protection
300A 15500V Clip-Lock Fuse for Transformer and Feeder Protection
150
- UPC
- 051712607780
- UNSPSC
- 39121626
- Country of Origin
- US
300A 15500V Clip-Lock Fuse for Transformer and Feeder Protection
$7,015.73 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$67.94 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
1/2A 1000V Non-Time Delay Fuse
1/2A 1000V Non-Time Delay Fuse
150
- UPC
- 051712719957
- UNSPSC
- 39121626
- Country of Origin
- MX
- Amperage Rating:
- 500m A
- Size:
- 0.41 In Diameter X 3.00 In Length
- Type:
- Fast Acting, Non Time Delay
- Voltage Rating:
- 1k V
- Amperage Rating:
- 500m A
- Connection:
- Ferrule End X Ferrule End
- Response Time:
- 4@110% to 1@135% h
- Short Circuit Rating:
- 30 kVA (AC), 20 kW (DC)
- Size:
- 0.41 In Diameter X 3.00 In Length
- Type:
- Fast Acting, Non Time Delay
- Voltage Rating:
- 1k V
1/2A 1000V Non-Time Delay Fuse
$67.94 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,331.31 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

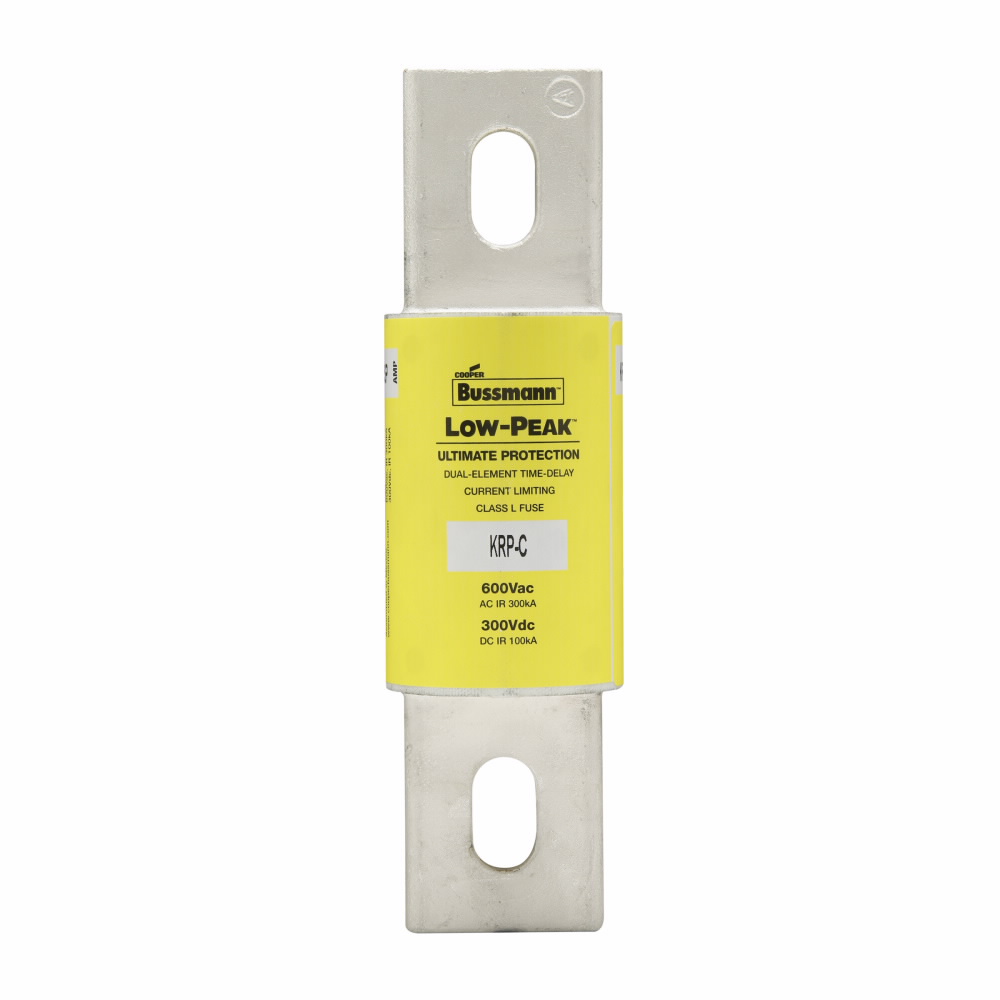

Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 800 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kA at 300 kAIC Vdc, 600 V, 300 Vdc
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 800 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kA at 300 kAIC Vdc, 600 V, 300 Vdc
Bussmann's broad line of UL Class L fuses includes the KRP-C-SP Low-Peak family of fuses offering un...150
Bussmann's broad line of UL Class L fuses includes the KRP-C-SP Low-Peak family of fuses offering unsurpassed dual-element, current-limiting, time-delay performance and interrupting ratings of 300kA RMS Sym. Complementing the Low-Peak family are our Limitron products offering both Fast-acting and economical time-delay performance in our KTU, KLU, and KRP-CL products
- UPC
- 051712605083
- UNSPSC
- 39121626
- Country of Origin
- MX
- Amperage Rating:
- 800 A
- Material:
- Melamine Glass Tube
- Size:
- 2.50 In Diameter X 8.63 In Length
- Type:
- Fuse
- Voltage Rating:
- 600//300 VAC//VDC
- Amperage Rating:
- 800 A
- Class:
- L
- Connection:
- Bolted blade end x bolted blade end
- Dimensions:
- 8.6300 IN X 2.5300 IN X 2.5300 IN
- Interrupt Rating:
- 300 kAIC at 600 Vac100 kA at 300 kAIC Vdc
- Material:
- Melamine Glass Tube
- Response Time:
- 4 sec at 500%
- Size:
- 2.50 In Diameter X 8.63 In Length
- Standard:
- CE Marked,RoHS Compliant
- Sub Brand:
- Bussmann Series
- Type:
- Fuse
- Voltage Rating:
- 600//300 VAC//VDC
Eaton Bussmann series KRP-C fuse, Current-limiting time-delay fuse, 800 A, L, Non-indicating, Bolted blade end x bolted blade end, 4 sec at 500%, 300 kAIC at 600 V,100 kA at 300 kAIC Vdc, 600 V, 300 V...
$1,331.31 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$85.52 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Eaton Cooper Power series Edison fuse link, 100A, Slow-acting, EEI-NEMA - FL3T100
Eaton Cooper Power series Edison fuse link, 100A, Slow-acting, EEI-NEMA - FL3T100
Eaton's Cooper Power series fuse links can be applied to a variety of applications requiring overcur...150
Eaton's Cooper Power series fuse links can be applied to a variety of applications requiring overcurrent protection of distribution systems and equipment. When properly coordinated with other overcurrent protective devices, sectionalizing to isolate faulted feeder branches or equipment can be accomplished. Kearney fuse links are available in a variety of types offering a wide selection of operating characteristics.
- UPC
- 051712145961
- UNSPSC
- 39121626
- Country of Origin
- MX
- Amperage Rating:
- 100 A
- Type:
- Edison Fuse link
- Amperage Rating:
- 100 A
- Dimensions:
- 0.7500 IN X 0.7500 IN X 23.0000 IN
- Standard:
- IEC Rated ,IEEE Certified ,Certifié IEEE ,Classé EC,Contact factory,Communiquer avec l'usine
- Sub Brand:
- Cooper Power Series
- Type:
- Edison Fuse link
Eaton Cooper Power series Edison fuse link, 100A, Slow-acting, EEI-NEMA - FL3T100
$85.52 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$7.77 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Eaton Bussmann series GMT telecommunication fuse, Color code white/yellow, 125 Vac, 60 Vdc, 1.50A, Non Indicating, Fast-acting, Tin-plated beryllium copper terminal
Eaton Bussmann series GMT telecommunication fuse, Color code white/yellow, 125 Vac, 60 Vdc, 1.50A, Non Indicating, Fast-acting, Tin-plated beryllium copper terminal
Fuses designed for high reliability applications where high ambient temperatures, low circuit voltag...150
Fuses designed for high reliability applications where high ambient temperatures, low circuit voltages, low power dissipation and low contact resistance are prime considerations. UL Recognized.
- UPC
- 051712576758
- UNSPSC
- 39121626
- Country of Origin
- US
- Amperage Rating:
- 1.50 A
- Material:
- Tin-plated beryllium copper terminal
- Size:
- 0.810 In Length X 0.688 In Height
- Type:
- Telecommunication fuse
- Voltage Rating:
- 125//60 VAC//VDC
- Amperage Rating:
- 1.50 A
- Dimensions:
- 0.7800 IN X 0.1100 IN X 0.6200 IN
- Interrupt Rating:
- 300 Amp at 125 Vac, 450 Amp at 60 Vdc
- Material:
- Tin-plated beryllium copper terminal
- Size:
- 0.810 In Length X 0.688 In Height
- Standard:
- CE Marked,RoHS Compliant
- Sub Brand:
- Bussmann Series
- Type:
- Telecommunication fuse
- Voltage Rating:
- 125//60 VAC//VDC
Eaton Bussmann series GMT telecommunication fuse, Color code white/yellow, 125 Vac, 60 Vdc, 1.50A, Non Indicating, Fast-acting, Tin-plated beryllium copper terminal
$7.77 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
