Products
$10.72 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
2-1/2" Insulated Malleable Iron Metallic Grounding Bushings With Aluminum Lug
2-1/2" Insulated Malleable Iron Metallic Grounding Bushings With Aluminum Lug
Insulated metallic grounding bushings are for use with accompanying aluminum lug to terminate condui...150
Insulated metallic grounding bushings are for use with accompanying aluminum lug to terminate conduit service; recommended for applications with copper or aluminum bare ground connectors. Protective thermoplastic throat liners are rated to 105 � C and help prevent wire insulation damage. Built to last high grade malleable iron construction, available in 1/2� to 6� sizes always in stock and ready for fast delivery. All models UL listed.
- UPC
- 751338130906
- UNSPSC
- 39121312
- Country of Origin
- MUL
- Material:
- Malleable Iron
- Size:
- 2-1/2 IN
- Type:
- Metallic Grounding Bushing
- Connection:
- Female Threaded
- Connectors (IN):
- Female Threaded IN
- Diameter:
- 3.60 IN
- For Use With:
- Copper/Aluminum Bare Ground Connector, Rigid & IMC Conduit
- Height:
- 0.95 IN
- ISTMT (testing temp) (DEG C):
- +105 DEG C
- Label Description:
- INSULATED METALLIC GROUNDING BUSHINGS-MALLEABLE IRON
- Material:
- Malleable Iron
- Size:
- 2-1/2 IN
- Size (IN):
- 2-1/2" IN
- Size (trade) (IN):
- 2-1/2" IN
- Standard:
- UL E170258, CSA Certified, UL 514B, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Temperature Rating:
- +105 DEG C
- Type:
- Metallic Grounding Bushing
- Wire Size:
- 14 to 1/0 AWG
2-1/2" Insulated Malleable Iron Metallic Grounding Bushings With Aluminum Lug
$10.72 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$4.25 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

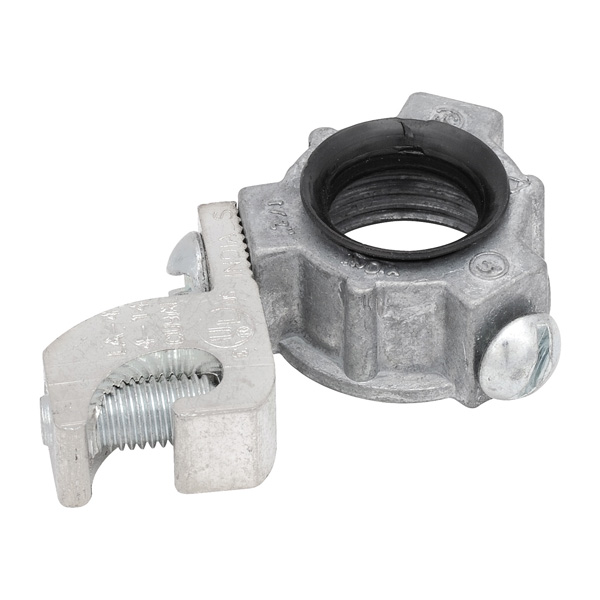

1-1/4" Insulated Zinc Metallic Grounding Bushings
1-1/4" Insulated Zinc Metallic Grounding Bushings
Insulated metallic grounding bushings are for use with accompanying aluminum lay-in grounding lug to...150
Insulated metallic grounding bushings are for use with accompanying aluminum lay-in grounding lug to terminate conduit service; recommended for applications with copper or aluminum bare ground connectors. Protective thermoplastic throat liners are rated to 105 � C and help prevent wire insulation damage. Built to last zinc die cast construction; trade sizes from 1/2� to 6� available and always in stock. All models UL listed.
- Tin plated aluminum alloy 6061-T6 rated for AL and CU conductor
- Liner is rated flame retardant to 105�C
- UL listed for use with copper or aluminum grounding conductor
- Tin plated aluminum alloy 6061-T6 rated for AL and CU conductor
- Liner is rated flame retardant to 105�C
- UL listed for use with copper or aluminum grounding conductor
- UPC
- 751338131606
- UNSPSC
- 39121312
- Country of Origin
- MUL
- Material:
- Die Cast Zinc
- Size:
- 1-1/4 IN
- Type:
- Metallic Grounding Bushing
- Connection:
- Female Threaded
- Connectors (IN):
- Female Threaded IN
- Diameter:
- 2.12 IN
- For Use With:
- Copper/Aluminum Bare Ground Connector, Rigid & IMC Conduit
- Height:
- 0.62 IN
- ISTMT (testing temp) (DEG C):
- +105 DEG C
- Label Description:
- INSULATED METALLIC GROUNDING BUSHINGS
- Material:
- Die Cast Zinc
- Size:
- 1-1/4 IN
- Size (IN):
- 1-1/4" IN
- Standard:
- UL E170258, CSA Certified, UL 514B, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Temperature Rating:
- +105 DEG C
- Type:
- Metallic Grounding Bushing
- Wire Size:
- 14 to 4 AWG
1-1/4" Insulated Zinc Metallic Grounding Bushings
$4.25 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$0.11 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Black-6/6 Nylon Universal Bushings .625 Mounting Hole Diameter
Black-6/6 Nylon Universal Bushings .625 Mounting Hole Diameter
Topaz�s Universal Bushings, with a .125 maximum thickness are engineered with flexible shutters to a...150
Topaz�s Universal Bushings, with a .125 maximum thickness are engineered with flexible shutters to accommodate a variety of shapes. Snap in assembly is easy to install and helps absorb vibration to better cushion cables and tubing with limited internal clearance. Fabricated from strong and lightweight corrosion proof 6/6 nylon; available in black with mounting hole diameters from 0.625 to 1.375. UL recognition.
- UPC
- 751338306202
- UNSPSC
- 39121312
- Country of Origin
- MUL
- Color:
- Black
- Material:
- Nylon 6-6
- Type:
- Universal Bushing
- CSA - U.S.:
- RU CSA
- Color:
- Black
- Diameter:
- 0.719 IN
- Height:
- 0.406 IN
- Hole Diameter:
- 0.625 IN
- Label Description:
- UNIVERSAL BUSHINGS
- Material:
- Nylon 6-6
- Maximum Thickness:
- 0.125 IN
- Size (trade) (IN):
- 0.625 IN
- Standard:
- UL Recognized, CSA Certified
- Type:
- Universal Bushing
Black-6/6 Nylon Universal Bushings .625 Mounting Hole Diameter
$0.11 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$0.15 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Black-6/6 Nylon Universal Bushings .750 Mounting Hole Diameter
Black-6/6 Nylon Universal Bushings .750 Mounting Hole Diameter
Topaz�s Universal Bushings, with a .125 maximum thickness are engineered with flexible shutters to a...150
Topaz�s Universal Bushings, with a .125 maximum thickness are engineered with flexible shutters to accommodate a variety of shapes. Snap in assembly is easy to install and helps absorb vibration to better cushion cables and tubing with limited internal clearance. Fabricated from strong and lightweight corrosion proof 6/6 nylon; available in black with mounting hole diameters from 0.625 to 1.375. UL recognition.
- UPC
- 751338306301
- UNSPSC
- 39121312
- Country of Origin
- MUL
- Color:
- Black
- Material:
- Nylon 6-6
- Type:
- Universal Bushing
- CSA - U.S.:
- RU CSA
- Color:
- Black
- Diameter:
- 0.859 IN
- Height:
- 0.391 IN
- Hole Diameter:
- 0.750 IN
- Label Description:
- UNIVERSAL BUSHINGS
- Material:
- Nylon 6-6
- Maximum Thickness:
- 0.125 IN
- Size (trade) (IN):
- 0.75 IN
- Standard:
- UL Recognized, CSA Certified
- Type:
- Universal Bushing
Black-6/6 Nylon Universal Bushings .750 Mounting Hole Diameter
$0.15 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$0.16 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
0.812 UNIVERSAL BUSHINGS - 6/6 NYLON
0.812 UNIVERSAL BUSHINGS - 6/6 NYLON
150
- UPC
- 751338306400
- UNSPSC
- 39121312
- Country of Origin
- MUL
- Color:
- Black
- Material:
- Nylon 6-6
- Type:
- Universal Bushing
- Color:
- Black
- Diameter:
- 0.859 IN
- Height:
- 0.391 IN
- Hole Diameter:
- 0.812 IN
- Material:
- Nylon 6-6
- Maximum Thickness:
- 0.125 IN
- Standard:
- UL Recognized, CSA Certified
- Type:
- Universal Bushing
0.812 UNIVERSAL BUSHINGS - 6/6 NYLON
$0.16 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$0.15 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

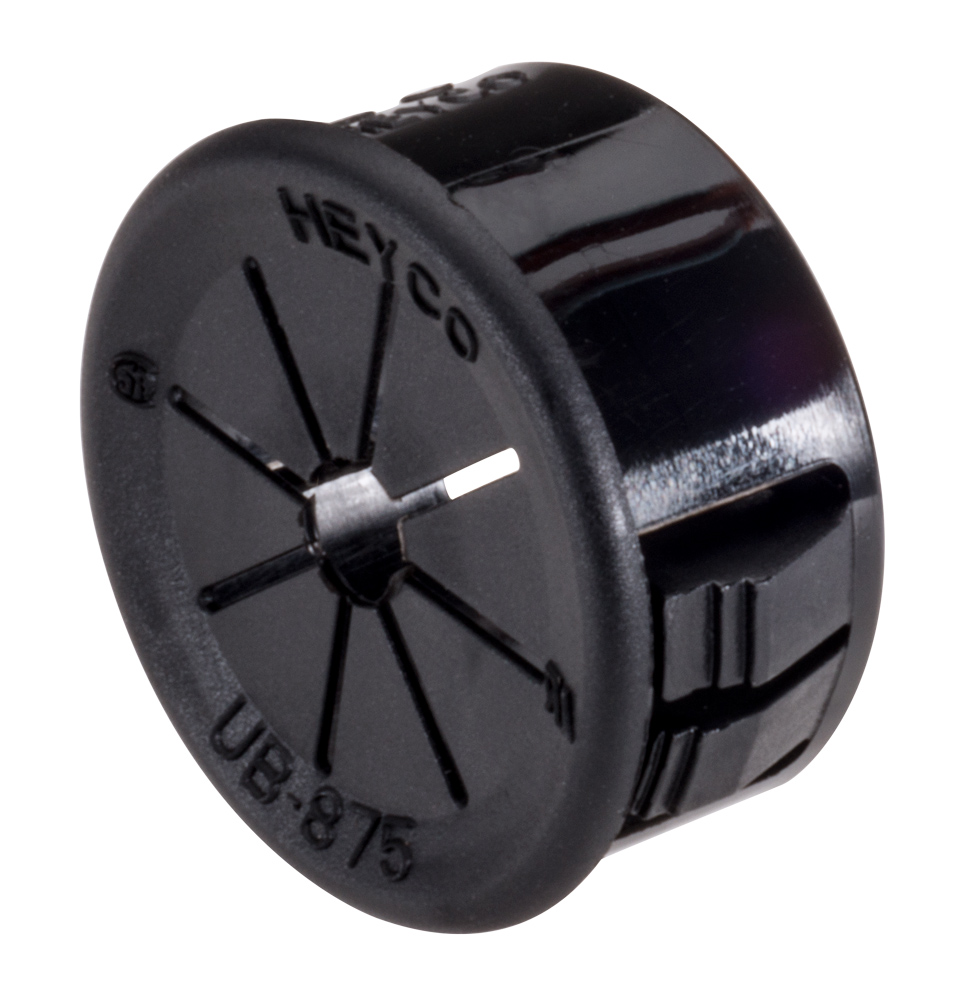

Black-6/6 Nylon Universal Bushings .875 Mounting Hole Diameter
Black-6/6 Nylon Universal Bushings .875 Mounting Hole Diameter
Topaz�s Universal Bushings, with a .125 maximum thickness are engineered with flexible shutters to a...150
Topaz�s Universal Bushings, with a .125 maximum thickness are engineered with flexible shutters to accommodate a variety of shapes. Snap in assembly is easy to install and helps absorb vibration to better cushion cables and tubing with limited internal clearance. Fabricated from strong and lightweight corrosion proof 6/6 nylon; available in black with mounting hole diameters from 0.625 to 1.375. UL recognition.
- UPC
- 751338306509
- UNSPSC
- 39121312
- Country of Origin
- MUL
- Color:
- Black
- Material:
- Nylon 6-6
- Size:
- 1/2 KO IN
- Type:
- Universal Bushing
- CSA - U.S.:
- RU CSA
- Color:
- Black
- Diameter:
- 0.938 IN
- Height:
- 0.453 IN
- Hole Diameter:
- 0.875 IN
- Label Description:
- UNIVERSAL BUSHINGS
- Material:
- Nylon 6-6
- Maximum Thickness:
- 0.125 IN
- Size:
- 1/2 KO IN
- Size (IN):
- 1/2" IN
- Size (trade) (IN):
- 0.875 IN
- Standard:
- UL Recognized, CSA Certified
- Type:
- Universal Bushing
Black-6/6 Nylon Universal Bushings .875 Mounting Hole Diameter
$0.15 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
- Certification Agency
- PROP65
- Certification Number
- WARNING: This product contains material that, the State of California has determined, may cause cancer and reproductive harm. ADVERTENCIA: Càncer y Daño Reproductivo. AVERTISSEMENT: Cancer et Effet Nocif Sur la Reproduction. www.p65warnings.ca.gov
$3.02 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
MADISON, 1 GRD INS BUSHING INSULATED GROUNDING BUSHING FOR GROUNDING PURPOSES, LAY-IN LUG, DUAL RATED CU-AL, 150 DEG LUG SIZE = 14 SOL. - 4 STR. ZINC DIE CAST AL/ CU DUAL RATED LAY-IN LUG MEETS UL514B, UL467
MADISON, 1 GRD INS BUSHING INSULATED GROUNDING BUSHING FOR GROUNDING PURPOSES, LAY-IN LUG, DUAL RATED CU-AL, 150 DEG LUG SIZE = 14 SOL. - 4 STR. ZINC DIE CAST AL/ CU DUAL RATED LAY-IN LUG MEETS UL514B, UL467
- UPC
- 784297340826
- UNSPSC
- 39121312
- Country of Origin
- CHN
MADISON, 1 GRD INS BUSHING INSULATED GROUNDING BUSHING FOR GROUNDING PURPOSES, LAY-IN LUG, DUAL RATED CU-AL, 150 DEG LUG SIZE = 14 SOL. - 4 STR. ZINC DIE CAST AL/ CU DUAL RATED LAY-IN LUG MEETS UL514...
$3.02 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
- Certification Agency
- PROP65
- Certification Number
- WARNING: This product contains material that, the State of California has determined, may cause cancer and reproductive harm. ADVERTENCIA: Càncer y Daño Reproductivo. AVERTISSEMENT: Cancer et Effet Nocif Sur la Reproduction. www.p65warnings.ca.gov
$3.70 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
MADISON, 1-1/4 GRD INS BUSHING INSULATED GROUNDING BUSHING FOR GROUNDING PURPOSES, LAY-IN LUG, DUAL RATED CU-AL, 150 DEG LUG SIZE = 14 SOL. - 4 STR. ZINC DIE CAST AL/ CU DUAL RATED LAY-IN LUG MEETS UL514B, UL467
MADISON, 1-1/4 GRD INS BUSHING INSULATED GROUNDING BUSHING FOR GROUNDING PURPOSES, LAY-IN LUG, DUAL RATED CU-AL, 150 DEG LUG SIZE = 14 SOL. - 4 STR. ZINC DIE CAST AL/ CU DUAL RATED LAY-IN LUG MEETS UL514B, UL467
- UPC
- 784297340833
- UNSPSC
- 39121312
- Country of Origin
- CHN
MADISON, 1-1/4 GRD INS BUSHING INSULATED GROUNDING BUSHING FOR GROUNDING PURPOSES, LAY-IN LUG, DUAL RATED CU-AL, 150 DEG LUG SIZE = 14 SOL. - 4 STR. ZINC DIE CAST AL/ CU DUAL RATED LAY-IN LUG MEETS U...
$3.70 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
