1-1/2" Straight Squeeze Type BX-Flex Connector
1-1/2" Straight Squeeze Type BX-Flex Connector
Topaz�s BX-FLEX Connectors feature squeeze type straight construction and are fabricated from natura...150
Topaz�s BX-FLEX Connectors feature squeeze type straight construction and are fabricated from naturally corrosion resistant and durable zinc die cast. Securely joins flexible metal conduit to EMT and in dry locations connects flexible metal conduit or armored cable to electrical boxes or enclosures. Single screw assembly in sizes 3/8� to 2�; 2 screw assembly in sizes 2-1/2� to 4�, available for conduit sizes 3/8� to 4�; UL listed. For use in dry locations only.
- Squeeze type straight
- Available with insulated throat
- Squeeze type straight
- Available with insulated throat
- UPC
- 751338110403
- UNSPSC
- 39121419
- Country of Origin
- MUL
- Material:
- Die Cast Zinc
- Size:
- 1-1/2 IN
- Type:
- Straight Squeeze BX-Flex Connector
- Cable Diameter:
- 1.68 to 1.94 IN
- Connection:
- Threaded x Squeeze
- Connectors (IN):
- Threaded x Squeeze IN
- Label Description:
- BX-FLEX CONNECTORS STRAIGHT
- Length:
- 2.09 IN
- Material:
- Die Cast Zinc
- Size:
- 1-1/2 IN
- Size (IN):
- 1-1/2" IN
- Standard:
- UL 514B, UL File Number E148716, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Thread Length:
- 0.750 IN
- Type:
- Straight Squeeze BX-Flex Connector
1-1/2" Straight Squeeze Type BX-Flex Connector
$4.93 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1.88 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

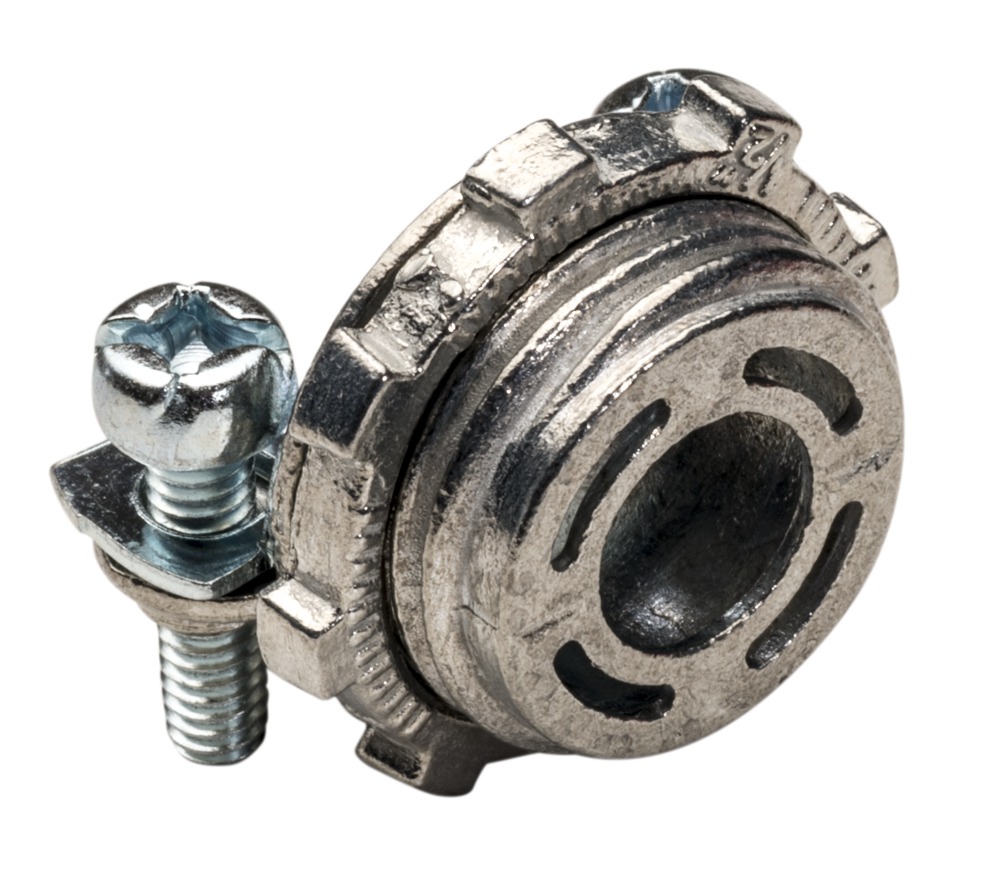

Two Screw Clamp Type Duplex Connector
Two Screw Clamp Type Duplex Connector
Topaz�s Duplex Connector for BX-FLEX, NM and MC cables feature a two screw clamp assembly with a UL...150
Topaz�s Duplex Connector for BX-FLEX, NM and MC cables feature a two screw clamp assembly with a UL listed locknut. Our clamp type connector is for use to connect flexible metal conduit or armored cable to box or enclosure. Fits aluminum smooth extruded MC, range .210 to .500; for use in interior, dry locations. Fabricated from corrosion resistant and dependable zinc die cast; 3/8� size with 1/2� knockout; NPT male hub for a fluid tight seal. UL listed.
- Duplex 2 screw clamp type
- UL listed locknut
- Male hub NPT
- Tri-combo screw head
- Duplex 2 screw clamp type
- UL listed locknut
- Male hub NPT
- Tri-combo screw head
- Duplex 2 screw clamp type
- UL listed locknut
- Male hub NPT
- Tri-combo screw head
- Duplex 2 screw clamp type
- UL listed locknut
- Male hub NPT
- Tri-combo screw head
- UPC
- 751338135000
- UNSPSC
- 39121419
- Country of Origin
- MUL
- Material:
- Die Cast Zinc
- Size:
- 3/8, 1/2 KO IN
- Type:
- Screw Clamp Duplex Connector
- Cable Diameter:
- 0.24 to 0.63 IN
- Connection:
- Screw Clamp
- Connectors (IN):
- Screw Clamp IN
- Label Description:
- DUPLEX CONNECTORS- 2 SCREW
- Length:
- 1.59 IN
- Material:
- Die Cast Zinc
- Size:
- 3/8, 1/2 KO IN
- Size (IN):
- 3/8" IN
- Standard:
- UL 514B, UL File Number E170258, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type:
- Screw Clamp Duplex Connector
Two Screw Clamp Type Duplex Connector
$1.88 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1.93 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

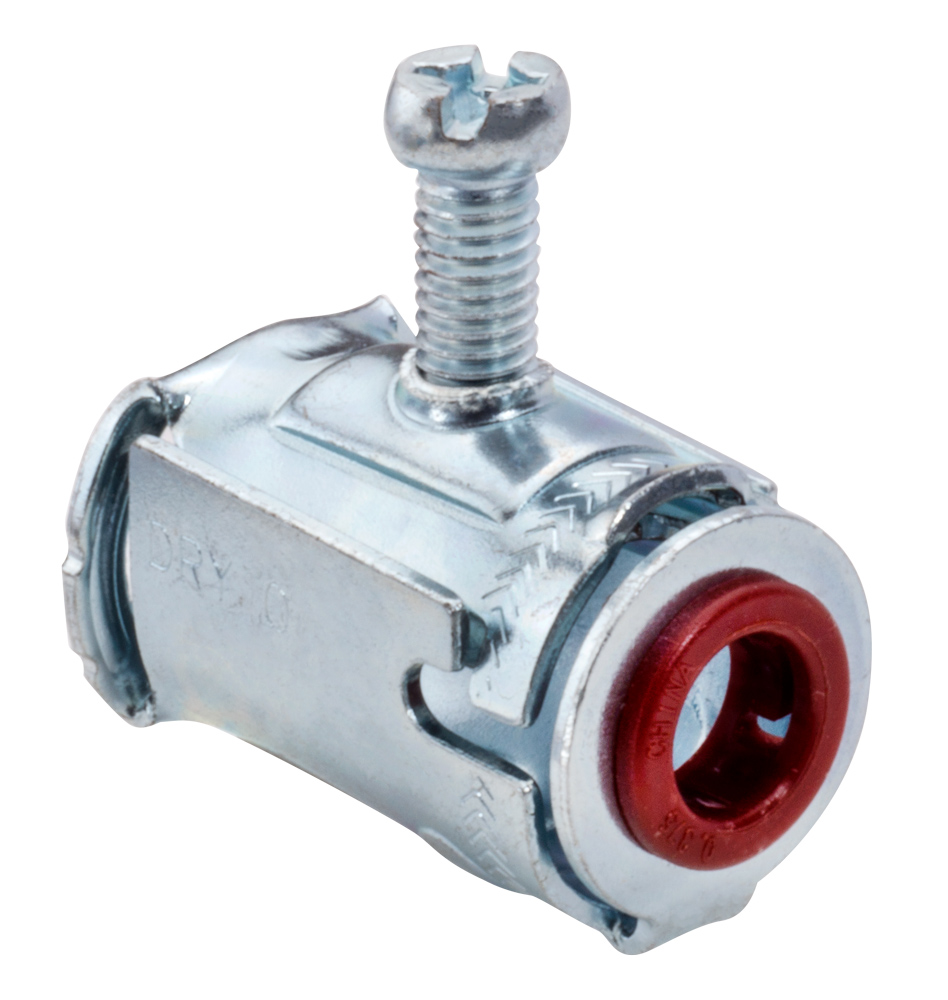

1/2" Snap-In MC Cable Connector Duplex
1/2" Snap-In MC Cable Connector Duplex
Make a secure connection to electrical junction boxes or enclosures with Topaz�s Snap-In MC Duplex C...150
Make a secure connection to electrical junction boxes or enclosures with Topaz�s Snap-In MC Duplex Cable Connector, Set Screw Type with Insulated Throat. Insulated throat design offers superior protection; snap in, set screw assembly enables quick and easy installation; no locknuts or other components required. Fabricated from rugged steel with a zinc plated finish to ensure longevity.
- No locknut required
- Single-unit or duplex construction with captive clamp
- No locknut required
- Single-unit or duplex construction with captive clamp
- UPC
- 751338337725
- UNSPSC
- 39121419
- Country of Origin
- MUL
- Material:
- Steel
- Size:
- 1/2 IN
- Type:
- Snap-In Set Screw BX-Flex Cable Connector
- Conductor Range:
- 14/2 to 12/2 AWG
- Connection:
- Snap In x Set Screw
- Connectors (IN):
- Snap In x Set Screw IN
- Height:
- 0.916 IN
- Insulation:
- Insulated Throat
- Label Description:
- BX-FLEX, NM & MC CABLE CONNECTORS
- Length:
- 1.520 IN
- Material:
- Steel
- Max Number of Conductors:
- 2
- Number Of Conductors:
- 2
- Set Screw Height:
- 0.868 IN
- Size:
- 1/2 IN
- Size (IN):
- 1/2" IN
- Standard:
- UL 514B, UL File Number E18176, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, CSA Certified, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type:
- Snap-In Set Screw BX-Flex Cable Connector
1/2" Snap-In MC Cable Connector Duplex
$1.93 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$6.63 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
1 1/4" 90 Degree Angle Connector-BX & Greenfield
1 1/4" 90 Degree Angle Connector-BX & Greenfield
- UPC
- 698397070142
- UNSPSC
- 39121419
- Country of Origin
- IND
1 1/4" 90 Degree Angle Connector-BX & Greenfield
$6.63 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$65.37 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
2 1/2" 90 Degree Angle Connector-BX & Greenfield
2 1/2" 90 Degree Angle Connector-BX & Greenfield
- UPC
- 698397201195
- UNSPSC
- 39121419
- Country of Origin
- IND
2 1/2" 90 Degree Angle Connector-BX & Greenfield
$65.37 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$2.12 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

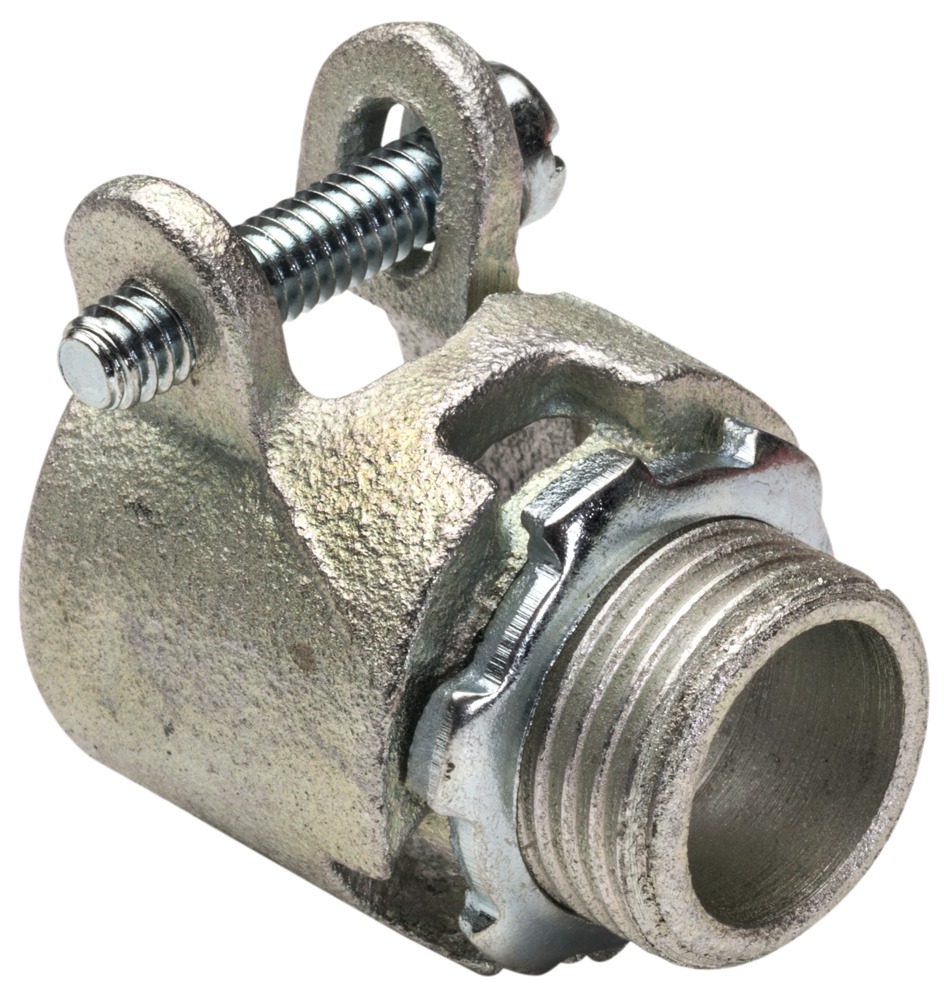

1/2" Strap Type BX & Greenfield Connector
1/2" Strap Type BX & Greenfield Connector
- UPC
- 698397070036
- UNSPSC
- 39121419
- Country of Origin
- IND
1/2" Strap Type BX & Greenfield Connector
$2.12 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$4.97 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
1 1/2" Flexible Conduit Straight Squeeze Connector
1 1/2" Flexible Conduit Straight Squeeze Connector
- UPC
- 698397070357
- UNSPSC
- 39121419
- Country of Origin
- IND
1 1/2" Flexible Conduit Straight Squeeze Connector
$4.97 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$3.98 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
2" Flexible Conduit Straight Squeeze Connector
2" Flexible Conduit Straight Squeeze Connector
- UPC
- 698397070364
- UNSPSC
- 39121419
- Country of Origin
- IND
2" Flexible Conduit Straight Squeeze Connector
