Products
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$212.53 / EA
manufacturer discounts
learn about discounts
- $190.54 for $1,500.00+
- $183.21 for $2,500.00+
- $175.88 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders
Safety position switch with separate actuator Metal enclosure, 56 mm Device connection 3x (M20x 1.5) Slow-action contacts 1 NO/2 NC with 2 LEDs, 24 V DC yellow/green 5 directions of approaches The matching separate actuator 3SE5000-0AV0. must be ordered separately
Safety position switch with separate actuator Metal enclosure, 56 mm Device connection 3x (M20x 1.5) Slow-action contacts 1 NO/2 NC with 2 LEDs, 24 V DC yellow/green 5 directions of approaches The matching separate actuator 3SE5000-0AV0. must be ordered separately
150
- UPC
- 754554951331
- UNSPSC
- 39122213
- Country of Origin
- DE
- Ambient temperature / during operation / maximum:
- 60 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Ambient temperature / during storage / maximum:
- 90 °C
- Ambient temperature / during storage / minimum:
- -40 °C
- Cable entry type:
- 3x(M20x1.5)
- Continuous current / of the C characteristic MCB:
- 1 A
- Continuous current / of the DIAZED fuse link gG:
- 6 A
- Continuous current / of the quick DIAZED fuse link:
- 10 A
- Design of the housing / acc. to standard:
- No
- Type of voltage / of the supply voltage / of the optional LED indicator:
- DC
Safety position switch with separate actuator Metal enclosure, 56 mm Device connection 3x (M20x 1.5) Slow-action contacts 1 NO/2 NC with 2 LEDs, 24 V DC yellow/green 5 directions of approaches The mat...
manufacturer discounts
learn about discounts
- $190.54 for $1,500.00+
- $183.21 for $2,500.00+
- $175.88 for $3,500.00+
$212.53 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,455.10 / EA
manufacturer discounts
learn about discounts
- $1,304.58 for $1,500.00+
- $1,254.40 for $2,500.00+
- $1,204.22 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

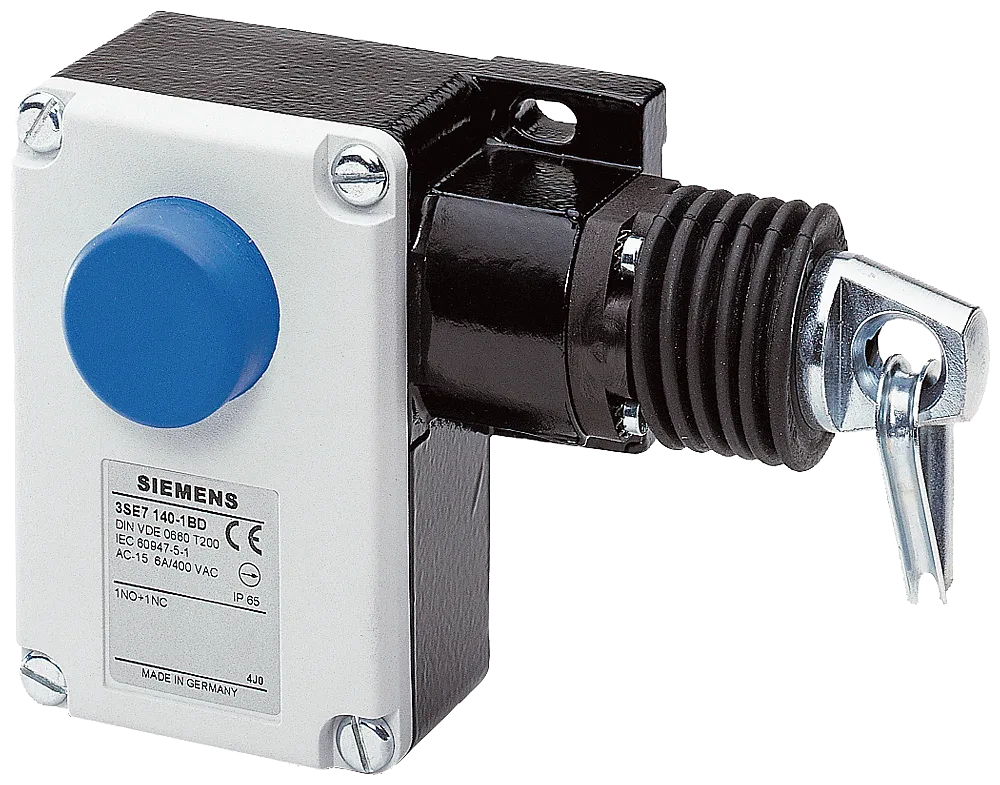

Cable-Operated Switch W/Latching ( & ) Button Reset Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
Cable-Operated Switch W/Latching ( & ) Button Reset Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
150
- UPC
- 754554836119
- UNSPSC
- 39122213
- Country of Origin
- DE
- Ambient temperature / during operation / maximum:
- 70 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Color / of top part of the enclosure:
- grey
- Depth:
- 71 mm
- Number of NC contacts / for auxiliary contacts:
- 1
- Number of NO contacts / for auxiliary contacts:
- 1
- Protection class IP:
- IP65
- Rope length / maximum:
- 130 m
- Switching function / Latching:
- Yes
Cable-Operated Switch W/Latching ( & ) Button Reset Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
manufacturer discounts
learn about discounts
- $1,304.58 for $1,500.00+
- $1,254.40 for $2,500.00+
- $1,204.22 for $3,500.00+
$1,455.10 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,829.09 / EA
manufacturer discounts
learn about discounts
- $1,639.87 for $1,500.00+
- $1,576.80 for $2,500.00+
- $1,513.73 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

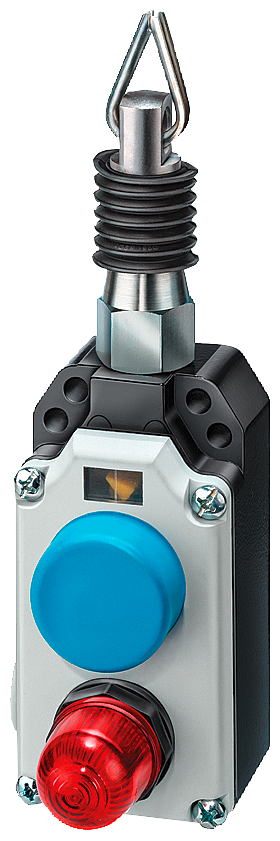

Cable-Operated Switch W/Latching, Reset ( & ) 24 VDC LED Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
Cable-Operated Switch W/Latching, Reset ( & ) 24 VDC LED Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
150
- UPC
- 754554864518
- UNSPSC
- 39122213
- Country of Origin
- DE
- Ambient temperature / during operation / maximum:
- 70 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Color / of top part of the enclosure:
- grey
- Depth:
- 89 mm
- Number of NC contacts / for auxiliary contacts:
- 1
- Number of NO contacts / for auxiliary contacts:
- 1
- Number of indicator lights:
- 1
- Protection class IP:
- IP65
- Rope length / maximum:
- 130 m
- Switching function / Latching:
- Yes
Cable-Operated Switch W/Latching, Reset ( & ) 24 VDC LED Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
manufacturer discounts
learn about discounts
- $1,639.87 for $1,500.00+
- $1,576.80 for $2,500.00+
- $1,513.73 for $3,500.00+
$1,829.09 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,455.10 / EA
manufacturer discounts
learn about discounts
- $1,304.58 for $1,500.00+
- $1,254.40 for $2,500.00+
- $1,204.22 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders
Cable-Operated Switch W/Latching ( & ) Button Reset Side Entry,Cable Pull 50 m Max.,Metal,2NC M16 x 1.5 Threaded Opening Width = 70mm
Cable-Operated Switch W/Latching ( & ) Button Reset Side Entry,Cable Pull 50 m Max.,Metal,2NC M16 x 1.5 Threaded Opening Width = 70mm
150
- UPC
- 754554864525
- UNSPSC
- 39122213
- Country of Origin
- DE
- Ambient temperature / during operation / maximum:
- 70 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Color / of top part of the enclosure:
- grey
- Depth:
- 71 mm
- Number of NC contacts / for auxiliary contacts:
- 2
- Protection class IP:
- IP65
- Rope length / maximum:
- 130 m
- Switching function / Latching:
- Yes
Cable-Operated Switch W/Latching ( & ) Button Reset Side Entry,Cable Pull 50 m Max.,Metal,2NC M16 x 1.5 Threaded Opening Width = 70mm
manufacturer discounts
learn about discounts
- $1,304.58 for $1,500.00+
- $1,254.40 for $2,500.00+
- $1,204.22 for $3,500.00+
$1,455.10 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,748.35 / EA
manufacturer discounts
learn about discounts
- $1,567.49 for $1,500.00+
- $1,507.20 for $2,500.00+
- $1,446.91 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders
Cable-Operated Switch With Latching ( & ) Key Unlatching Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
Cable-Operated Switch With Latching ( & ) Key Unlatching Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
150
- UPC
- 754554864532
- UNSPSC
- 39122213
- Country of Origin
- DE
- Ambient temperature / during operation / maximum:
- 70 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Color / of top part of the enclosure:
- grey
- Depth:
- 99.5 mm
- Number of NC contacts / for auxiliary contacts:
- 1
- Number of NO contacts / for auxiliary contacts:
- 1
- Protection class IP:
- IP54
- Rope length / maximum:
- 130 m
- Switching function / Latching:
- Yes
Cable-Operated Switch With Latching ( & ) Key Unlatching Side Entry,Cable Pull 50 m Max.,Metal,1NO+1NC M16 x 1.5 Threaded Opening Width = 70mm
manufacturer discounts
learn about discounts
- $1,567.49 for $1,500.00+
- $1,507.20 for $2,500.00+
- $1,446.91 for $3,500.00+
$1,748.35 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$853.79 / EA
manufacturer discounts
learn about discounts
- $765.47 for $1,500.00+
- $736.03 for $2,500.00+
- $706.58 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

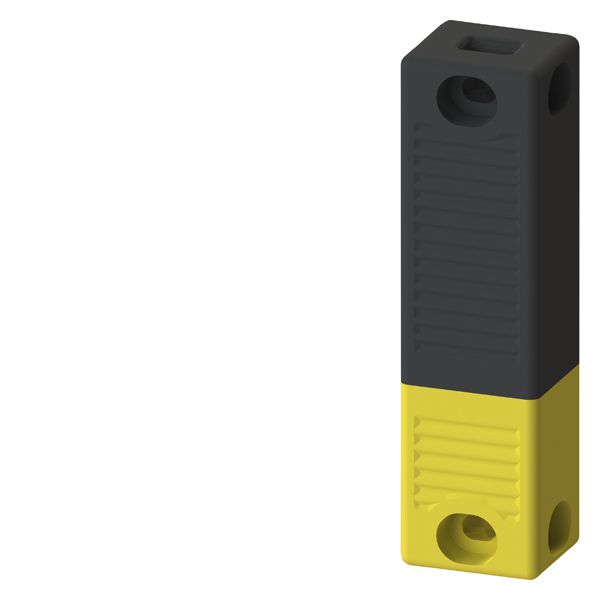

Rfid non-contact safety switch rectangular 25mm x 91mm, individually coded, multiple teACh-in capability with m12 connector 8-pole order actuator separately 3SE6310-0bc01
Rfid non-contact safety switch rectangular 25mm x 91mm, individually coded, multiple teACh-in capability with m12 connector 8-pole order actuator separately 3SE6310-0bc01
150
- UPC
- 040892854169
- UNSPSC
- 39122213
- Country of Origin
- DE
- Height of the sensor:
- 22 mm
- Length of the sensor:
- 106 mm
- Number of switching contacts / for signaling function / safety-related:
- 1
- Operating distance:
- 12 mm
- Output current / at safety-related output / maximum:
- 0.25 A
- Supply voltage / maximum:
- 26.4 V
- Supply voltage / minimum:
- 20.4 V
- Switching frequency:
- 1 Hz
- Type of electrical connection:
- M12plug,8-pole
- Width of the sensor:
- 25 mm
Rfid non-contact safety switch rectangular 25mm x 91mm, individually coded, multiple teACh-in capability with m12 connector 8-pole order actuator separately 3SE6310-0bc01
manufacturer discounts
learn about discounts
- $765.47 for $1,500.00+
- $736.03 for $2,500.00+
- $706.58 for $3,500.00+
$853.79 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$929.33 / EA
manufacturer discounts
learn about discounts
- $833.20 for $1,500.00+
- $801.15 for $2,500.00+
- $769.10 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders
Rfid non-contact safety switch rectangular 25mm x 91mm, individually coded, single teACh-in capability with m12 connector 8-pole order actuator separately 3SE6310-0bc01
Rfid non-contact safety switch rectangular 25mm x 91mm, individually coded, single teACh-in capability with m12 connector 8-pole order actuator separately 3SE6310-0bc01
150
- UPC
- 040892854176
- UNSPSC
- 39122213
- Country of Origin
- DE
- Height of the sensor:
- 22 mm
- Length of the sensor:
- 106 mm
- Number of switching contacts / for signaling function / safety-related:
- 1
- Operating distance:
- 12 mm
- Output current / at safety-related output / maximum:
- 0.25 A
- Supply voltage / maximum:
- 26.4 V
- Supply voltage / minimum:
- 20.4 V
- Switching frequency:
- 1 Hz
- Type of electrical connection:
- M12plug,8-pole
- Width of the sensor:
- 25 mm
Rfid non-contact safety switch rectangular 25mm x 91mm, individually coded, single teACh-in capability with m12 connector 8-pole order actuator separately 3SE6310-0bc01
manufacturer discounts
learn about discounts
- $833.20 for $1,500.00+
- $801.15 for $2,500.00+
- $769.10 for $3,500.00+
$929.33 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
