Designed to provide one-step firestopping for penetrations through fire-rated concrete floor assemblies, 3M™ Fire Barrier Cast-In Devices for Plastic Pipes are a proven alternative to core drilling holes. Installers simply attach the devices directly to floor decking, pour concrete around them and route penetrants after the concrete cures. Heights are adjustable in half-inch (13 mm) increments.

Designed to provide one-step firestopping for penetrations through fire-rated concrete floor assemblies, 3M™ Fire Barrier Cast-In Devices for Plastic Pipes are a proven alternative to core drilling holes. Installers simply attach the devices directly to floor decking, pour concrete around them and route penetrants after the concrete cures. Heights are adjustable in half-inch (13 mm) increments. read less

Simply a Better Way to FirestopFirestopping through concrete used to mean three things: pouring the...150 read more

Simply a Better Way to FirestopFirestopping through concrete used to mean three things: pouring the concrete, core drilling holes, and firestopping later. 3M™ Fire Barrier Cast-In Devices for Plastic Pipes eliminate the time and expense of firestopping non-metallic penetrants using extra materials such as pipe devices, intumescent strips and caulk. This allows for a more secure, permanent firestop installation before concrete is poured. A series of built-in tear strips makes for fast, easy height adjustment in ½ inch increments: using only a pliers, installers can quickly adjust the height of the device from its maximum 8 inches (203.2 mm) to as low as 2-1/2 inches (57.2 mm). The device secures easily to floor decking, and its one-piece design withstands the everyday impact and wear of the construction site. Its white cap, easily visible after pour, signifies it as a pass-through device for non-metallic penetrants.Recommended ApplicationsFirestopping of plastic pipes – ccPVC, PVC, ENT, CPVC, FRPP, PVDF, ccABS, ABS, rigid non-metallic, PEXFor concrete thicknesses from 2-1/2 inches (203.2 mm) to 8 inches (57.2 mm) or higher in conjunction with 3M™ Fire Barrier Cast-In Devices Height AdaptorIn conjunction with 3M™ Fire Barrier Cast-In Device Metal Deck Adaptor for attaching to fluted decksFully Tested and ApprovedIntumescent 3M™ Fire Barrier Cast-In Devices for Plastic Pipes are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479). They are UL Classified for 2- and 3-hour fire (F) rating, and 1- and 3-hour temperature (T) rating. They also meet UL Water Leakage Test, W Rating - Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 (see system details).Reliable and Affordable Fire ProtectionEffective and easy to install, 3M™ Fire Barrier Cast-In Devices for Plastic Pipes are part of 3M’s family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products. read less

3M™ Expantrol™ Flexible Intumescent Strip E-FIS is an intumescent tape designed to seal the air spaces between doors, frames, and glass to help prevent the spread of fire, smoke, toxic gases and other by-products from penetrating into adjacent areas. Intumescent material expands and forms a hard char when exposed to heat. This flexible, conformable strip can be quickly cut to required sizes.

3M™ Expantrol™ Flexible Intumescent Strip E-FIS is an intumescent tape designed to seal the air spaces between doors, frames, and glass to help prevent the spread of fire, smoke, toxic gases and other by-products from penetrating into adjacent areas. Intumescent material expands and forms a hard char when exposed to heat. This flexible, conformable strip can be quickly cut to required sizes. read less

Effective Fire Resistance in a Convenient Tape StripDuring a fire, it’s vital that doors, fram...150 read more

Effective Fire Resistance in a Convenient Tape StripDuring a fire, it’s vital that doors, frames and fire-resistant glass are properly sealed to help prevent the spread of flames, smoke and noxious gasses. 3M™ Expantrol™ Flexible Intumescent Strip E-FIS is an excellent solution: an intumescent adhesive strip, tested for tensile strength according to ASTM D 412-83, is conformable, flexible and easy to apply. This convenient rolled strip can be easily cut to fit a range of applications without special tools, saving time and money. The re-enterable adherent surface supports material that is designed to expand when exposed to intense heat – effectively sealing the gaps in door frames and glazing applications. This material forms a hard char that continues to resist fire and forms a smoke seal, helping eliminate the spread of smoke and other toxic by-products during and after a fire.Recommended Applications Sealing doors, frames and glass where fire resistance is necessaryThe Science of Better Fire Protection from 3MSince 1925 when a 3M lab assistant invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each adhesive, sealant, protective coating, device and fire resistance product including 3M™ Expantrol™ Flexible Intumescent Strip E-FIS to help businesses like yours operate faster, better and more efficiently. read less

Thin, lightweight and flexible, 3M™ Fire Barrier Duct Wrap 615+ provides excellent insulating capabilities and offers a space-saving alternative to traditional bulky fire protection methods obtained through a gypsum wall shaft or enclosure. This wrap is commonly used in commercial kitchen grease ducts, as well as ventilation ducts.

Thin, lightweight and flexible, 3M™ Fire Barrier Duct Wrap 615+ provides excellent insulating capabilities and offers a space-saving alternative to traditional bulky fire protection methods obtained through a gypsum wall shaft or enclosure. This wrap is commonly used in commercial kitchen grease ducts, as well as ventilation ducts. read less

Lightweight, Thin and Low-Profile Protection3M™ Fire Barrier Duct Wrap 615+ is a fire-rated du...150 read more

Lightweight, Thin and Low-Profile Protection3M™ Fire Barrier Duct Wrap 615+ is a fire-rated duct wrap consisting of an inorganic fiber blanket encapsulated with a scrim-reinforced foil. Because the blanket is adhered to the foil scrim it will resist wrapping and slumping. This non-asbestos wrap installs easily due to its high flexibility, low weight and thin profile – making it an ideal choice for duct enclosure systems. It is a proven alternative to 1- and 2-hour fire resistant shaft enclosures for grease ducts. 3M™ Fire Barrier Duct Wrap 615+ performs in temperatures up to 2192°F/1200°C.3M™ Fire Barrier Duct Wrap 615+ is the only fire-rated duct wrap product you'll ever need to help protect both grease ducts and air ducts while passing the necessary fire tests to achieve up to 2-hour fire-resistance requirements. It is third party certified to ASTM E2336 (grease duct test standard) and ISO 6944 (air duct test standard). It is tested and listed with UL and Intertek, meets IBC, IMC, UMN, NFPA and other key life safety codes. It is listed by California State Fire Marshall (listing No. 2440-0941:5555).Recommended Applications Fire resistive enclosure for commercial kitchen grease ducts Stair pressurization ducts Life safety air and ventilation ducts read less

3M™ Fire Barrier Cast-In Devices for Metal Pipes provide one-step firestopping for penetrations through fire-rated concrete floor assemblies. Instead of drilling holes, installers simply attach the devices directly to floor decking, pour slabs around them and route penetrants after curing. Heights are easily adjustable, and these intumescent devices are rated for up to 3-hour fire protection.

3M™ Fire Barrier Cast-In Devices for Metal Pipes provide one-step firestopping for penetrations through fire-rated concrete floor assemblies. Instead of drilling holes, installers simply attach the devices directly to floor decking, pour slabs around them and route penetrants after curing. Heights are easily adjustable, and these intumescent devices are rated for up to 3-hour fire protection. read less

Simply a Better Way to FirestopFirestopping through concrete used to mean three things: pouring the...150 read more

Simply a Better Way to FirestopFirestopping through concrete used to mean three things: pouring the concrete, drilling core holes, and firestopping later. 3M™ Fire Barrier Cast-In Devices for Metal Pipes eliminate the time and expense of firestopping metallic penetrants using extra materials such as pipe devices, strips and caulk, allowing for secure, permanent firestop installation before slabs are poured. A series of built-in tear strips makes for fast, easy height adjustment: using only a pliers, installers can quickly adjust the height of the device from its maximum 8” (203.2 mm) to as low as 2-1/2" (57.2 mm). The device secures easily to floor decking, and its one-piece design withstands the everyday impact and wear of the construction site even at floor level. Its black cap, easily visible after pouring, signifies it as a pass-through device for metallic penetrants.Recommended Applications Firestopping of metal pipes – copper, steel, iron, flexible gas For concrete thicknesses from 2-1/2” to 8” or higher in conjunction with 3M™ Fire Barrier Cast-In Devices Height Adaptor In conjunction with 3M™ Fire Barrier Cast-In Device Metal Deck Adaptor for attaching to fluted decksFully Tested and ApprovedIntumescent 3M™ Fire Barrier Cast-In Devices for Metal Pipes are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479). They are UL Classified for 2- and 3-hour fire (F) rating, and 1- and 3-hour temperature (T) rating. They also meet UL Water Leakage Test, W Rating - Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 (see system details).The Science of Better Fire Protection from 3MSince 1925 when a 3M lab assistant invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each 3M adhesive, sealant, protective coating and device including 3M™ Fire Barrier Cast-In Devices for Metal Pipes to improve performance, and to help businesses like yours operate faster, better and more efficiently. read less

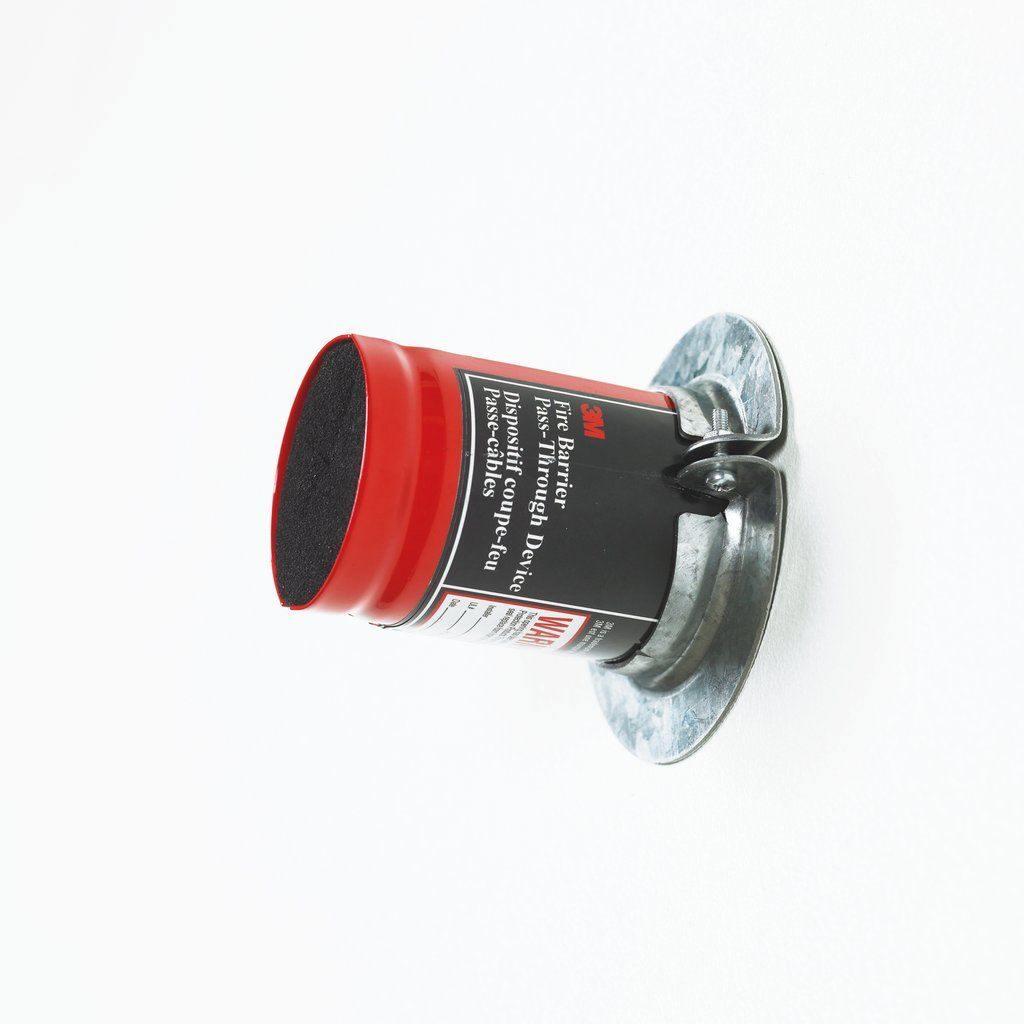

Our 3M™ Fire Barrier Pass-Through Brackets are designed for use in conjunction with our 3M™ Fire Barrier Pass-Through Device Round to support and strengthen firestop through penetration installations. Round metal brackets come in pairs for securing the device on each side of the floor or wall assembly.

Our 3M™ Fire Barrier Pass-Through Brackets are designed for use in conjunction with our 3M™ Fire Barrier Pass-Through Device Round to support and strengthen firestop through penetration installations. Round metal brackets come in pairs for securing the device on each side of the floor or wall assembly. read less

For Complete Pass-Through Firestop InstallationDesigned specifically for use with 3M™ Fire Barrier P...150 read more

For Complete Pass-Through Firestop InstallationDesigned specifically for use with 3M™ Fire Barrier Pass-Through Device Round, these 3M™ Fire Barrier Pass-Through Brackets add support and longevity to the entire through-penetration firestop application. Durable metal brackets are built to fit the metallic pass-through device and hold it securely to fire rated floors or walls for effective through penetration firestopping of critical equipment and cable systems.Recommended ApplicationsFor use with 3M™ Fire Barrier Pass-Through Device — Round in fire-rated floor and wall assembliesCables — 750 kcmil, Cat 6, fiber optic, 300 pair No. 24 AWG copper telephone cable, thermostatPlastic pipes — ccPVC, PVC, ENT, CPVC, FRPP, PVDF, ccABS, ABS, rigid non-metallic, PEXMetal pipes — copper, steel, iron, flexible gasInsulated — AB/PVC on copper line setsCombinations — metallic, non-metallic and insulated pipes plus cablesBlank penetrationsAbout Fire Barrier Pass-Through DevicesThese mounting brackets work in conjunction with 3M™ Fire Barrier Pass-Through Devices, which feature a fixed fire-rated intumescent material and foam smoke seals. In the event of a fire, intumescent material quickly expands to seal the inside of the device, helping to prevent the spread of smoke, toxic gases and fire into other compartments. Smoke seals are removable, making these metal enclosures suitable for firestopping critical equipment, such as telecom, and cable systems where cables may be added or removed frequently. Round Pass-Through Devices are excellent for matching standard openings created by common hole saws, masonry dry core or concrete wet core bits.Reliable and Affordable Fire ProtectionEffective and easy to install, 3M™ Fire Barrier Pass-Through Brackets are part of 3M's family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products. read less

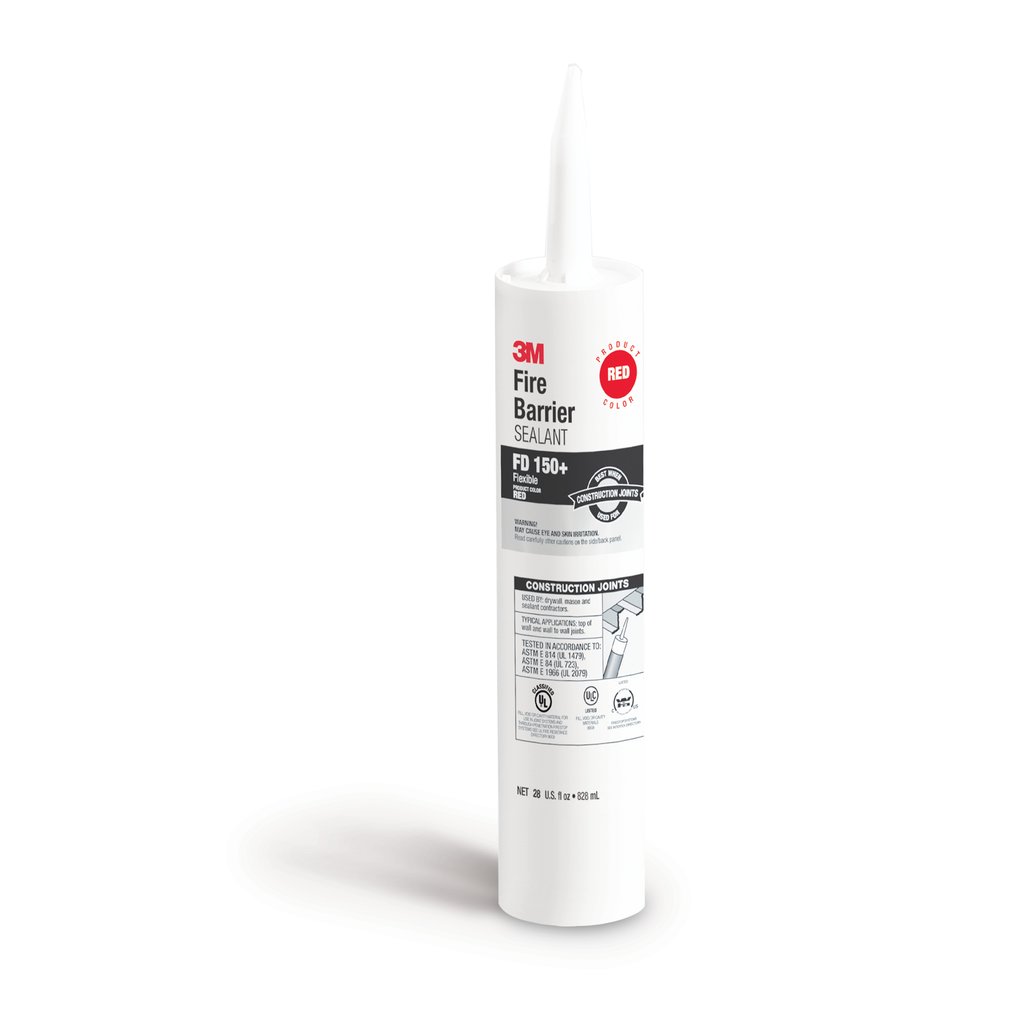

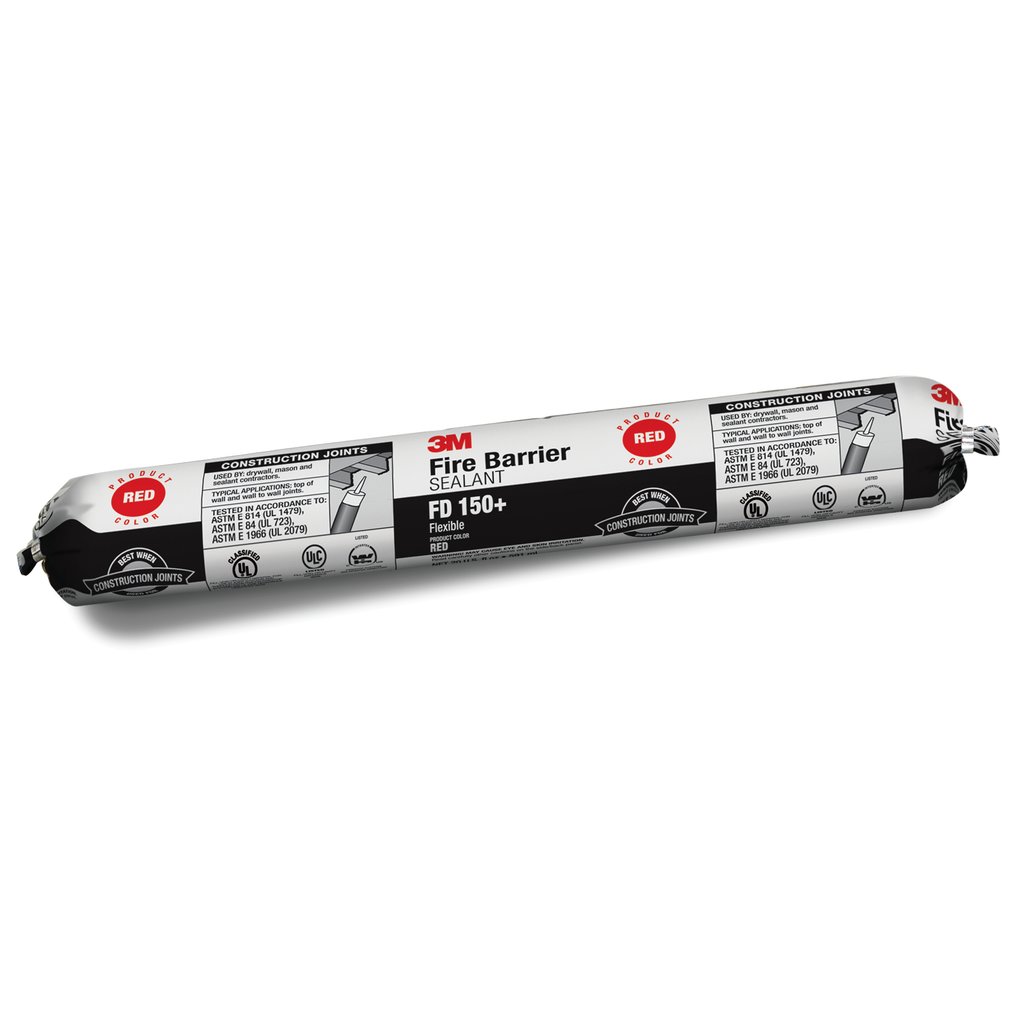

Our 3M™ Fire Barrier Sealant FD 150+ is a gun-grade, latex-based, elastomeric sealant that cures upon exposure to the atmosphere to form a monolithic flexible firestop seal. When properly installed, this sealant helps control the spread of fire, smoke and noxious gasses before, during and after exposure to a fire and exhibits excellent adhesion to a full range of construction substrates.

Our 3M™ Fire Barrier Sealant FD 150+ is a gun-grade, latex-based, elastomeric sealant that cures upon exposure to the atmosphere to form a monolithic flexible firestop seal. When properly installed, this sealant helps control the spread of fire, smoke and noxious gasses before, during and after exposure to a fire and exhibits excellent adhesion to a full range of construction substrates. read less

Tried and Tested Fire ProtectionReady-to-use, 3M™ Fire Barrier Sealant FD 150+ is a latex-base...150 read more

Tried and Tested Fire ProtectionReady-to-use, 3M™ Fire Barrier Sealant FD 150+ is a latex-based elastomeric sealant. This gun-grade sealant cures when dispensed to form a monolithic flexible firestop seal and, when properly installed, this product provides up to 4-hour fire protection in tested and listed systems. This sealant is formulated to help prevent the spread of fire, smoke and noxious gas and firestop joints and through penetrations through floor slabs, walls and other fire-rated building partitions and assemblies. This firestop sealant offers a continuous seal with ± 19% movement capability for construction joints and typical pipe movement and exhibits excellent adhesion to a full range of construction substrates.Recommended Applications Construction joints Piping, all non-combustible and small diameter combustible CablesFire Barrier Features3M™ Fire Barrier Sealant FD 150+ acts as an acoustic barrier by minimizing noise transfer (STC-Rating of 56 when tested in a STC 56-rated wall assembly). This fire barrier sealant is designed to be water-based for easy installation, cleanup and disposal. In addition, the high-solids formula produces limited shrinkage. This halogen-free sealant is sag-resistant and has an excellent caulk rate (applied with conventional caulking equipment). It dries to the touch in 30 – 60 minutes and can be painted. In addition, this sealant has been engineered to be re-enterable and repairable.Reliable and Affordable Fire ProtectionEffective and easy to install, 3M™ Fire Barrier Sealant FD 150+ is part of 3M's family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products. read less

Our 3M™ Fire Barrier Sealant FD 150+ is a gun-grade, latex-based, elastomeric sealant that cures upon exposure to the atmosphere to form a monolithic flexible firestop seal. When properly installed, this sealant helps control the spread of fire, smoke and noxious gasses before, during and after exposure to a fire and exhibits excellent adhesion to a full range of construction substrates.

Our 3M™ Fire Barrier Sealant FD 150+ is a gun-grade, latex-based, elastomeric sealant that cures upon exposure to the atmosphere to form a monolithic flexible firestop seal. When properly installed, this sealant helps control the spread of fire, smoke and noxious gasses before, during and after exposure to a fire and exhibits excellent adhesion to a full range of construction substrates. read less

Tried and Tested Fire ProtectionReady-to-use, 3M™ Fire Barrier Sealant FD 150+ is a latex-base...150 read more

Tried and Tested Fire ProtectionReady-to-use, 3M™ Fire Barrier Sealant FD 150+ is a latex-based elastomeric sealant. This gun-grade sealant cures when dispensed to form a monolithic flexible firestop seal and, when properly installed, this product provides up to 4-hour fire protection in tested and listed systems. This sealant is formulated to help prevent the spread of fire, smoke and noxious gas and firestop joints and through penetrations through floor slabs, walls and other fire-rated building partitions and assemblies. This firestop sealant offers a continuous seal with ± 19% movement capability for construction joints and typical pipe movement and exhibits excellent adhesion to a full range of construction substrates.Recommended Applications Construction joints Piping, all non-combustible and small diameter combustible CablesFire Barrier Features3M™ Fire Barrier Sealant FD 150+ acts as an acoustic barrier by minimizing noise transfer (STC-Rating of 56 when tested in a STC 56-rated wall assembly). This fire barrier sealant is designed to be water-based for easy installation, cleanup and disposal. In addition, the high-solids formula produces limited shrinkage. This halogen-free sealant is sag-resistant and has an excellent caulk rate (applied with conventional caulking equipment). It dries to the touch in 30 – 60 minutes and can be painted. In addition, this sealant has been engineered to be re-enterable and repairable.Reliable and Affordable Fire ProtectionEffective and easy to install, 3M™ Fire Barrier Sealant FD 150+ is part of 3M's family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products. read less

Engineered to form a monolithic seal after drying, 3M™ Fire Barrier Sealant IC 15WB+ is a yellow, one-part, gun-grade, intumescent firestop sealant that provides up to 3-hour fire protection in tested and listed systems. This helps prevent the spread of fire, smoke and noxious gas, while also acting as an acoustic barrier to help minimize noise transfer.

Engineered to form a monolithic seal after drying, 3M™ Fire Barrier Sealant IC 15WB+ is a yellow, one-part, gun-grade, intumescent firestop sealant that provides up to 3-hour fire protection in tested and listed systems. This helps prevent the spread of fire, smoke and noxious gas, while also acting as an acoustic barrier to help minimize noise transfer. read less

Establish a Strong Firestop Barrier?Designed to prevent the spread of fire, smoke and noxious gas, 3...150 read more

Establish a Strong Firestop Barrier?Designed to prevent the spread of fire, smoke and noxious gas, 3M™ Fire Barrier Sealant IC 15WB+ is a one-part, gun-grade, latex-based, intumescent firestop sealant. This firestop sealant provides up to 3-hour fire protection in accordance with ASTM E 814 (UL 1479) and CAN/ULC S115. In addition, this product is fire resistance tested for static construction joint systems in accordance with ASTM E 1966 (UL 2079). This sealant has been formulated to form a monolithic firestop seal that also helps minimize sound transfer, acting as a barrier to airborne sound transmission (STC-Rating of 54 when tested in a STC 54-rated wall assembly).Recommended Applications HVAC ducts and vents Metallic and non-metallic, including CPVC pipes Blank openings Single and bundled cables Insulated pipe Pipe and cable through-Penetrations Busways Combos Rated wall, floor and floor-ceiling assemblies Static construction jointsFormulated for Protection and Ready for Inspection3M™ Fire Barrier Sealant IC 15WB+ is formulated to be easily cleaned-up with water. This sealant is paintable, as well as re-enterable and repairable. It is a halogen-free sealant that features exceptional adhesion, excellent caulk rate and sag-resistance. In addition, inspectors can instantly recognize 3M™ Fire Barrier Sealant IC 15WB+ by its distinctive yellow color.3M™ Fire Barrier Sealant IC 15WB+ firestops through penetrations passing through fire-rated floor, floor/ceiling or wall assemblies, as well as other fire-rated interior building partitions and assemblies (e.g. static construction joints or blank openings). In addition, the unique intumescent property of this material allows 3M™ Fire Barrier Sealant IC 15WB+ to expand and help maintain a firestop penetration seal for up to 3 hours of fire exposure. 3M™ Fire Barrier Sealant IC 15WB+ bonds to most construction substrates, including: gypsum wallboard, concrete, metals, wood, plastic and cable jacketing. This sealant meets the intent of LEED® VOC environmental regulations, International Building Code (IBC) and other key life safety building code requirements.Reliable and Affordable Fire ProtectionEffective and easy to install, 3M™ Fire Barrier Sealant IC 15WB+ is part of the 3M family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products. read less
