3M™ Fire Barrier RC-1 Restricting Collar works with our 3M™ Fire Barrier Wrap Strip FS-195+ or Ultra GS firestops for through penetrations in wall, floor and floor/ceiling assemblies. Durable 28-gauge steel collar is easily cut to fit the pipe diameter. The collar secures the firestop and provides tabs for anchoring to walls or floor slabs, helping ensure stability for effective firestops.

3M™ Fire Barrier RC-1 Restricting Collar works with our 3M™ Fire Barrier Wrap Strip FS-195+ or Ultra GS firestops for through penetrations in wall, floor and floor/ceiling assemblies. Durable 28-gauge steel collar is easily cut to fit the pipe diameter. The collar secures the firestop and provides tabs for anchoring to walls or floor slabs, helping ensure stability for effective firestops. read less

A Small but Vital Part of an Effective Firestop SystemWith its small but critical design features, 3...150 read more

A Small but Vital Part of an Effective Firestop SystemWith its small but critical design features, 3M™ Fire Barrier RC-1 Restricting Collar is integral to successful intumescent firestop installation around penetrations in wall, floor and floor/ceiling assemblies. Quite simply, it’s a crucial component for ensuring that elastomeric and hard char firestop material will properly close openings left by burned non-metallic pipes and other penetrations. In fact, the use of such a collar is required for firestopping plastic pipes larger than 4 (101.6 mm) in diameter. The Fire Barrier RC-1 is ideal for use in conjunction with 3M™ Fire Barrier Wrap Strip FS-195+ or 3M™ Fire Barrier Ultra GS firestops.Recommended ApplicationsUL-classified for use on PVC, CPVC, ABS, CCPVC, CCABS, PVDF, PP and PB plastic pipeIn conjunction with 3M™ Fire Barrier Wrap Strip FS-195+In conjunction with 3M™ Fire Barrier Ultra GSThe Basis for Durable FirestopsDurable 28-gauge steel is thin enough for installers to easily unroll and cut to size around the installed firestop. It is quickly secured into place with a hose clamp or steel tie wire. Notches in its outer edge of the RC-1 Restricting Collar form bendable tabs – installers simply bend them into place and use hardware such as masonry fasteners (sold separately) to anchor them to the floor or ceiling slab. The result is a permanent, fixed firestop that also contributes to the structural stability of the penetration.The Science of Better Fire Protection from 3MSince 1925 when a lab assistant invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each adhesive, sealant, and protective coating, along with the best ways to use them – including 3M™ Fire Barrier RC-1 Restricting Collar – to improve performance, and to help businesses like yours operate faster, better and more efficiently. read less

Our 3M™ Fire Barrier Water Tight Sealant 1000 NS is a ready-to-use, single component, neutral cure, silicone sealant that cures upon exposure to atmospheric humidity to form a flexible firestop seal. Our water tight sealants help control the spread of fire, smoke and noxious gases before, during and after exposure to fire.

Our 3M™ Fire Barrier Water Tight Sealant 1000 NS is a ready-to-use, single component, neutral cure, silicone sealant that cures upon exposure to atmospheric humidity to form a flexible firestop seal. Our water tight sealants help control the spread of fire, smoke and noxious gases before, during and after exposure to fire. read less

Formulated for Sealed Protection3M™ Fire Barrier Water Tight Sealant 1000 NS is formulated as...150 read more

Formulated for Sealed Protection3M™ Fire Barrier Water Tight Sealant 1000 NS is formulated as a single component, neutral cure, silicone sealant. This ready-to-use sealant cures upon exposure to atmospheric humidity to form a flexible firestop seal that helps control the spread of fire, smoke and noxious gases before, during and after exposure to fire. When properly installed, this water tight sealant provides up to 3-hour protection in tested and listed systems and meets UL Water Leakage Test, W Rating - Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479. We designed this non-slump firestop sealant as a re-enterable and repairable solution primarily used on vertical surfaces.Recommended Applications Dynamic and static construction joints Perimeter fire barrier system and curtain wall joints Firestop blank openings Penetrating items that pass through fire-rated floor or wall assembliesMeets Industry DemandsA durable solution, 3M™ Fire Barrier Water Tight Sealant 1000 NS is halogen-free, provides an excellent caulk rate and offers exceptional weatherability. This elastomeric sealant offers compression and extension capability of ±31% for dynamic and static construction joints. In addition, we formulated this sealant to be paintable with primer and compatible with CPVC piping.This product also provides acoustic benefits by minimizing noise transfer (STC-Rating of 56 when tested in a STC 56-rated wall assembly) and acts as a smoke seal for installations requiring the L-Rating. This sealant meets the intent of LEED® VOC environmental regulations, International Building Code (IBC) and other key life safety building code requirements.All-In-One Sealant SolutionFor a sealant ready to shield and protect from both water and fire, look no further than 3M™ Fire Barrier Water Tight Sealant 1000NS. This water tight sealant meets both UL 1479 (ASTM E 814) firestop tests and UL W-Rating for water tightness when used on floor penetrations. Discover the benefits of an all-in-one solution for water infiltration and fire containment.Reliable and Affordable Fire ProtectionEffective and easy to install, 3M™ Fire Barrier Water Tight Sealant 1000 NS is part of 3M's family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products. read less

Our 3M™ Fire Barrier Pass-Through Device Foam Plugs are designed for closing 3M™ Fire Barrier Pass-Through Devices which are used in wall and floor through-penetrations. They are simple to use and help reduce sound and smoke transmission. During a fire, this product, used in conjunction with a 3M™ Fire Barrier Pass-Through Device, helps maintain a tight seal against smoke.

Our 3M™ Fire Barrier Pass-Through Device Foam Plugs are designed for closing 3M™ Fire Barrier Pass-Through Devices which are used in wall and floor through-penetrations. They are simple to use and help reduce sound and smoke transmission. During a fire, this product, used in conjunction with a 3M™ Fire Barrier Pass-Through Device, helps maintain a tight seal against smoke. read less

Enhanced Seal for Fire PreventionEngineered to help stop smoke and sound, 3M™ Fire Barrier Pass-Thro...150 read more

Enhanced Seal for Fire PreventionEngineered to help stop smoke and sound, 3M™ Fire Barrier Pass-Through Device Foam Plugs are replacement foam plugs designed for firestop applications in walls and floors. These are re-enterable and reusable. Installation is easy, saving both time and labor.Recommended ApplicationsSeal ends of 3M™ Fire Barrier Pass-Through DevicesReliable and Affordable Fire ProtectionEffective and easy to install, 3M™ Fire Barrier Pass-Through Device Foam Plugs are part of 3M’s family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products. read less

Our 3M™ Fire Barrier Wrap Strips FS-195+ are a convenient and cost-effective firestop for plastic pipe, insulated pipe and cable, blank and other penetrations in fire-rated wall, floor and floor/ceiling assemblies. This intumescent firestop with aluminum foil exterior blocks flame, heat and toxic by-products of combustion. Installers simply wrap the strips around the penetration, secure and seal.

Our 3M™ Fire Barrier Wrap Strips FS-195+ are a convenient and cost-effective firestop for plastic pipe, insulated pipe and cable, blank and other penetrations in fire-rated wall, floor and floor/ceiling assemblies. This intumescent firestop with aluminum foil exterior blocks flame, heat and toxic by-products of combustion. Installers simply wrap the strips around the penetration, secure and seal. read less

Firestop Material for a Range of ApplicationsEngineered as a wrappable firestop for applications inc...150 read more

Firestop Material for a Range of ApplicationsEngineered as a wrappable firestop for applications including blank penetrations, large openings and even plastic and other non-metallic pipe penetration systems, 3M™ Fire Barrier Wrap Strips FS-195+ are fire-rated up to 4 hours in tested and listed systems and meets ASTM E814 (UL 1479) performance standards. Intumescent material expands when heated to deliver excellent thermal insulation, as well as provide an effective firestop for non-metallic penetrants.Recommended Applications Plastic pipe and conduit penetrations up to 10” diameter Metal pipe penetrations Insulated pipe penetrations Blank penetrations Bus ducts Cable trays and bundles In conjunction with 3M™ Fire Barrier Composite Sheet CS-195+ for large openings Use with 3M™ Fire Barrier RC-1 Restricting Collar3M™ Fire Barrier Wrap Strips FS-195+ can be installed into a wide range of applications because of its convenient wrappable strip construction – the flexible, firestop material comes in strips which can be quickly and easily wrapped around the penetration. Installers simply apply the strip, cut it with common tools, secure it in place with a 3M™ Fire Barrier RC-1 Restricting Collar, steel tie wire and/or 3M™ Composite Sheet CS-195+ and seal it with materials such as 3M™ Fire Barrier Sealant CP 25WB+ or Moldable Putty. It is designed for excellent weatherability against temperature and humidity, and is re-enterable to save added time and material costs after installation.The Science of Better Fire Protection from 3MSince 1925 when a 3M lab assistant invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each 3M adhesive, sealants and protective coatings including 3M™ Fire Barrier Wrap Strips FS-195+ – to improve performance, and to help businesses like yours operate faster, better and more efficiently. read less

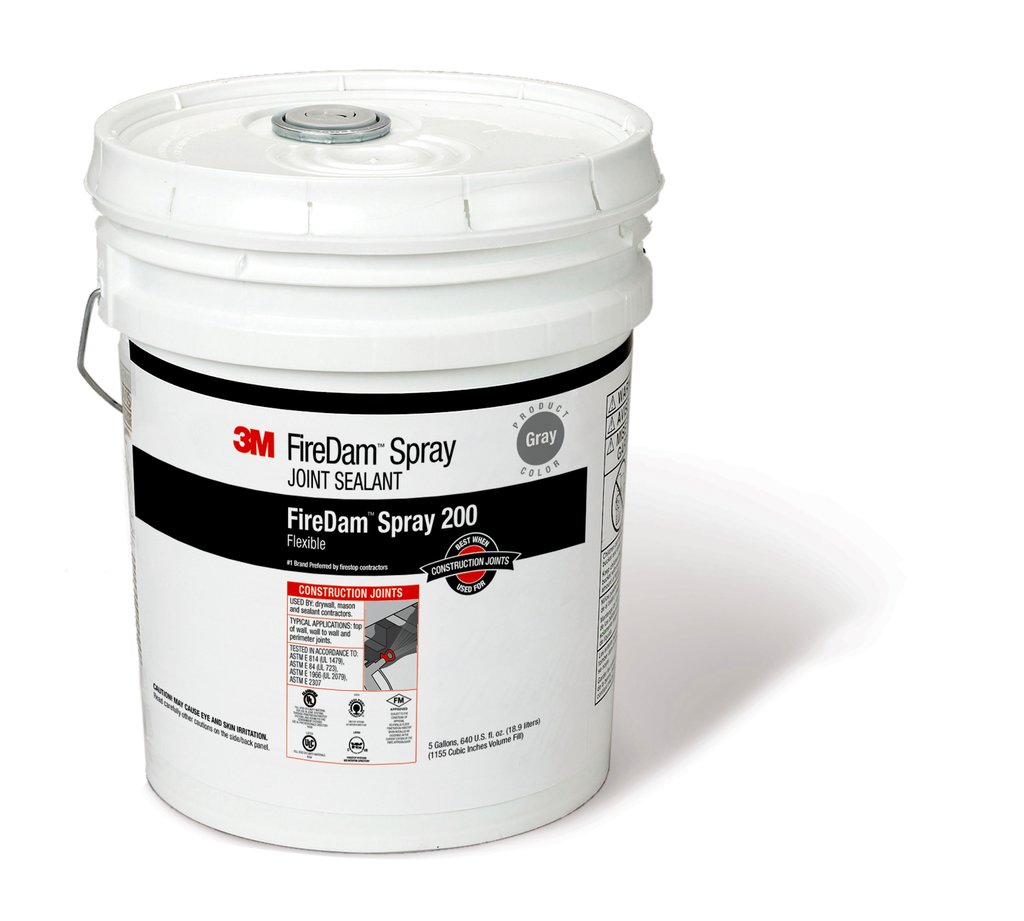

Our 3M™ FireDam™ Spray 200 is a sprayable material that dries to form a tough, elastomeric coating. It will firestop building joints, curtain wall perimeter joints and through penetration seals to control the transmission of fire, heat, smoke and noxious gas. This water-based firestop sealer is applied with conventional airless sprayers, dries quickly and cleans up easily.

Our 3M™ FireDam™ Spray 200 is a sprayable material that dries to form a tough, elastomeric coating. It will firestop building joints, curtain wall perimeter joints and through penetration seals to control the transmission of fire, heat, smoke and noxious gas. This water-based firestop sealer is applied with conventional airless sprayers, dries quickly and cleans up easily. read less

Effective Fire Protection in a Flexible, Durable CoatingFormulated for flexibility that stays where...150 read more

Effective Fire Protection in a Flexible, Durable CoatingFormulated for flexibility that stays where it’s sprayed, 3M™ FireDam™ Spray 200 controls the transmission of fire, heat, smoke and noxious gasses before, during and after exposure to fire. It provides up to 4-hour fire protection in construction joints per ASTM E 1966 (UL 2079) and up to 2-hour protection for through penetration systems per ASTM E 814 (UL 1479) & CAN/ULC-S115. It also provides up to 3-hour fire protection in perimeter fire barrier systems (curtain walls) in accordance with ASTM E 2307. This firestop coating is Ideal for sealing building joints, penetration seals and perimeter joints between fire-rated floors and fire-rated walls. It also minimizes noise transfer (STC Rating of 56 when tested in a STC 56-rated wall assembly).This elastomeric coating forms a durable, flexible seal with up to +/- 50% compression/extension of nominal joint width without cracking. It resists sag for vertical applications, and displays excellent hiding power which makes it easier for technicians to maintain the proper coating thickness.Recommended Applications Floor to floor joints Perimeter joints (curtain walls) Head-of-wall jointsEasy Spray-On Fire ProtectionThe water-based, easy-cleanup 3M™ FireDam™ Spray 200 is applied using conventional airless sprayers. Applied as a 1/8” (3mm) coating, it dries quickly to a uniform seal in a variety of conditions. It is also freeze and thaw resistant, helping to ensure consistent firestop in a range of conditions during construction. 3M™ FireDam™ Spray 200 is available in a distinct red for easy identification, or a dark gray to match existing surroundings.Reliable and Affordable Fire ProtectionEffective and easy to install, 3M™ FireDam™ Spray 200 is part of 3M's family of fire protection products that offer the broadest, long-lasting solutions for a variety of commercial, industrial and residential applications. As a trusted leader in the fire protection industry, 3M offers a broad line of affordable products designed to meet the most demanding firestop requirements. Find the solution you need from the industry-preferred line of fire protection products. read less
