21414
SKU: 21414
MPN: 21414
Key specs
View all- Amperage Rating
- 20A/30 A
- Color
- Black/White
- Material
- Composite
- Number Of Poles
- 3
- Size
- 2.44 in x 2.44 in x 6.00 in
- Type
- Connector Body
Description
Product overview

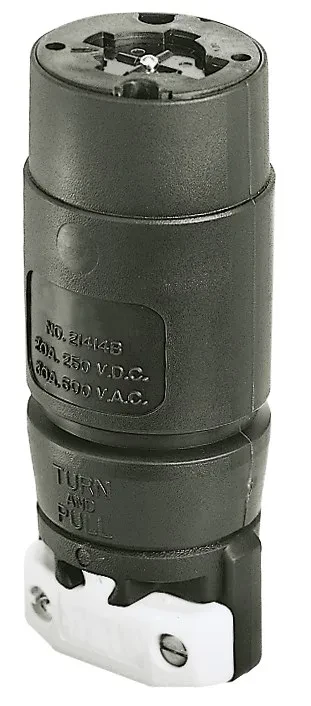

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord grip
Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord grip
Manufacturer highlights
Additional manufacturer notes
- Short name
- BRYANT
- Feed description
- BRYANT 21414 POW-INT CONN, 3P4W, 30
- Invoice description
- POW-INT CONN, 3P4W, 30A 250/600V
Specifications
- UPC
- 781786618602
- UNSPSC
- 39121421
- Country of Origin
- US
- Amperage Rating
- 20A/30 A
- Color
- Black/White
- Material
- Composite
- Number Of Poles
- 3
- Size
- 2.44 in x 2.44 in x 6.00 in
- Type
- Connector Body
- Voltage Rating
- 250 VDC/600 VAC
- Amperage Rating
- 20A/30 A
- Brand ID
- BRYANT
- Carton Quantity
- 5
- Catalog Number
- 21414
- Color
- Black/White
- Conductor Range
- #12 AWG to #8 AWG
- Cord Diameter
- 0.700-1.200 in
- Current Rating
- 20A/30 A
- Description - Long
- Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord grip
- Description - Short
- Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
- EU RoHS Indicator
- No
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets
- Spring loaded safety shutter contains arcing when mating or un-mating devices under load;Spring loaded safety shutter automatically ejects the plug eliminating contact teasing;Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit;Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
- FV_Current/Amperage Rating Description
- 20 Amp /30 Amp
- FV_Voltage Rating Description
- 250 VDC/600 VAC
- Insulation
- Insulated Body
- Item Type
- 20A/30A Connector
- Material
- Composite
- Material - Mounting Hardware
- Cord Mounted
- Number Of Conductors
- 4-Wire Grounding
- Number Of Poles
- 3
- OEM Brand Name
- Hubbell Bryant
- Product Name
- 21414
- Size
- 2.44 in x 2.44 in x 6.00 in
- Temperature Rating
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type
- Connector Body
- UPC
- 781786618602
- Voltage Rating
- 250 VDC/600 VAC
- Voltage Rating Description
- 250 VDC/600 VAC
