Bryant Electric 23002GIB Electrical Connector Assembly product image

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

23002GIB

SKU: 23002GIB

MPN: 23002GIB

Purchase options

$147.00 / EA

manufacturer discounts
learn about discounts

$132.30 for $300.00+
$126.00 for $500.00+
$120.75 for $1,000.00+

Available to order

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Amperage Rating: 20 A
Color: Black/White
Material: Composite
Number Of Poles: 2
Voltage Rating: 125-480V AC kV

Description

Product overview

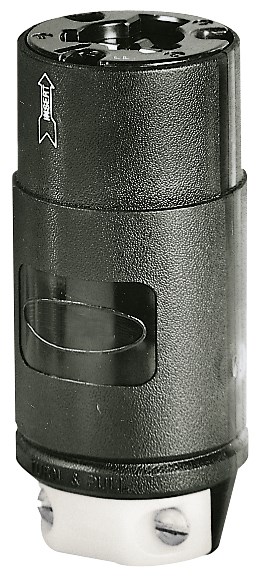

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 20A 125V/10A 250V DC 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Modified Product

Manufacturer highlights

Additional manufacturer notes

Short name: BRYANT
Feed description: BRYANT 23002GIB POW-INT CONN, 2P3W,
Invoice description: POW-INT CONN, 2P3W, 20A 125-480V, MOD

Specifications

UPC: 781786618848

UNSPSC: 39121421

Country of Origin: US

Amperage Rating: 20 A

Color: Black/White

Material: Composite

Number Of Poles: 2

Voltage Rating: 125-480V AC kV

Amperage Rating: 20 A

Brand ID: BRYANT

Carton Quantity: 50

Catalog Number: 23002GIB

Color: Black/White

Conductor Range: #14 AWG to #12 AWG

Current / Amperage Rating: 20 A

Current Rating: 20 A

Description - Long: Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 20A 125V/10A 250V DC 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Modified Product

Description - Short: Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 20A 125V/10A 250V DC 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Modified Product

EU RoHS Indicator: Yes

Environmental Conditions: Indoor Dry Unless Protected By Additional Means

FV_Current / Amperage Rating: 20 A

Insulation: Insulated Body

Item Type: Standard

Material: Composite

Material - Mounting Hardware: Cord Mounted

NEMA Rating: Non-NEMA

Number Of Conductors: 3-Wire Grounding

Number Of Poles: 2

OEM Brand Name: Hubbell Bryant

Temperature Rating: Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.

UPC: 781786618848

Voltage Rating: 125-480V AC kV

Do you have a question about 23002GIB?

Similar items

Compare alternates in this category before ordering.

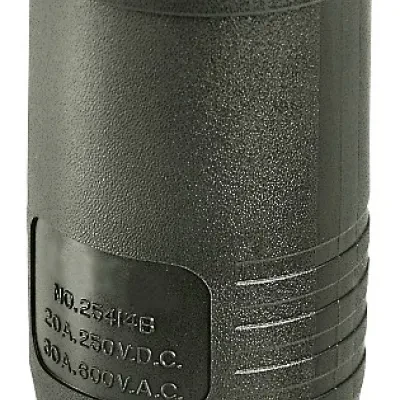

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord gr...

Similar item

25414

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 4-Pole 5-Wire Grounding, Non-NEMA,...

$341.60 / EA

Available to order

View details

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 60A 600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Yellow polycarbonate outer cover and...

Similar item

26418

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 60A 600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Termina...

$630.00 / EA

Available to order

View details

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 60A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Blue polycarbonate outer cover and ad...

Similar item

26516

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 60A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Termina...

$800.80 / EA

Available to order

View details

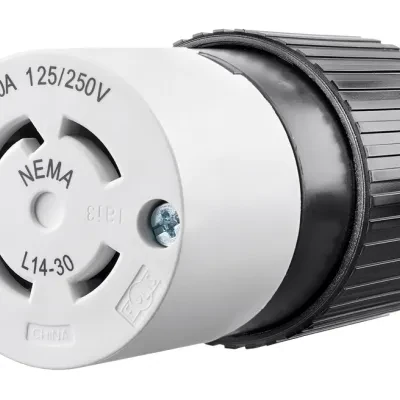

Locking Devices, Industrial, Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Black and White

Similar item

71430NCC

Locking Devices, Industrial, Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Black and White

$84.77 / EA

Available to order

View details

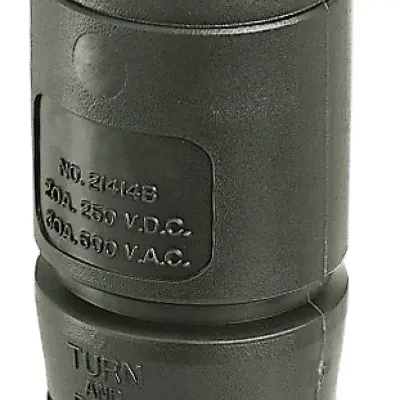

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord gr...

Similar item

21414

Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA,...

$266.00 / EA

Available to order

View details

Similar item

5469B

Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R,...

$26.75 / EA

Available to order

View details

Specification comparison

Scan the attributes that differ across these alternatives.

25414 View key specs

SKU: 25414
Price: $341.60 / EA
Availability: Available to order
Amperage Rating: 30 A
Brand ID: BRYANT
Carton Quantity: 5
Catalog Number: 25414
Color: Black/White
Conductor Range: #12 AWG to #8 AWG

View full product details

26418 View key specs

SKU: 26418
Price: $630.00 / EA
Availability: Available to order
Amperage Rating: 60 A
Brand ID: BRYANT
Carton Quantity: 5
Catalog Number: 26418
Color: Yellow
Conductor Range: #6 AWG to #4 AWG

View full product details

26516 View key specs

SKU: 26516
Price: $800.80 / EA
Availability: Available to order
Amperage Rating: 60 A
Brand ID: BRYANT
Carton Quantity: 5
Catalog Number: 26516
Color: Blue
Conductor Range: #6 AWG to #4 AWG

View full product details

71430NCC View key specs

SKU: 71430NCC
Price: $84.77 / EA
Availability: Available to order
Amperage Rating: 30 A
Brand ID: BRYANT
Carton Quantity: 10
Catalog Number: 71430NCC
Color: Black/White
Conductor Range: #12 AWG to #8 AWG

View full product details

21414 View key specs

SKU: 21414
Price: $266.00 / EA
Availability: Available to order
Amperage Rating: 20A/30 A
Brand ID: BRYANT
Carton Quantity: 5
Catalog Number: 21414
Color: Black/White
Conductor Range: #12 AWG to #8 AWG

View full product details

5469B View key specs

SKU: 5469B
Price: $26.75 / EA
Availability: Available to order
Amperage Rating: 20 A
Brand ID: BRYANT
Carton Quantity: 10
Catalog Number: 5469B
Color: Black
Conductor Range: #14 AWG to #10 AWG

View full product details

Attribute	25414 Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 3...	26418 Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 6...	26516 Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 6...	71430NCC Locking Devices, Industrial, Female Connector Body, 30A 125/250V, 3-Pole 4-Wire...	21414 Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 3...	5469B Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial...
Price	$341.60 / EA	$630.00 / EA	$800.80 / EA	$84.77 / EA	$266.00 / EA	$26.75 / EA
Availability	Available to order	Available to order	Available to order	Available to order	Available to order	Available to order
Amperage Rating	30 A	60 A	60 A	30 A	20A/30 A	20 A
Brand ID	BRYANT	BRYANT	BRYANT	BRYANT	BRYANT	BRYANT
Carton Quantity	5	5	5	10	5	10
Catalog Number	25414	26418	26516	71430NCC	21414	5469B
Color	Black/White	Yellow	Blue	Black/White	Black/White	Black
Conductor Range	#12 AWG to #8 AWG	#6 AWG to #4 AWG	#6 AWG to #4 AWG	#12 AWG to #8 AWG	#12 AWG to #8 AWG	#14 AWG to #10 AWG
Cord Diameter	0.700-1.200 in	0.920-1.450 in	0.920-1.450 in	—	0.700-1.200 in	—
Current / Amperage Rating	—	—	—	30 A	—	20 A
Current Rating	30 A	60 A	60 A	30 A	20A/30 A	20 A
Description - Long	Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord grip	Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 60A 600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Yellow polycarbonate outer cover and adjustable cord grip	Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 60A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Blue polycarbonate outer cover and adjustable cord grip	Locking Devices, Industrial, Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Black and White	Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 600V AC/ 20A 250V DC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black nylon with cord grip	Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Black, Single Pack
Description - Short	Locking Devices, Bryant Power Interrupting, Industrial, Female Connetor Body, 30A 250V DC/600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White	Locking Devices, Bryant Power Interrupting, Industrial, Female, 60A 600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Yellow	Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 60A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Blue	Locking Devices, Industrial, Female Connector Body, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Black and White	Locking Devices, Bryant Power Interrupting, Industrial, Female Connector Body, 30A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White	Straight Blade Devices, Female Connector Body, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Black, Single Pack
EU RoHS Indicator	No	No	No	Yes	No	Yes
Environmental Conditions	Indoor Dry Unless Protected By Additional Means	Indoor Dry Unless Protected By Additional Means	Indoor Dry Unless Protected By Additional Means	Indoor Dry Unless Protected By Additional Means	Indoor Dry Unless Protected By Additional Means	Indoor Dry Unless Protected By Additional Means
FEATURES - Bullets	Spring loaded safety shutter contains arcing when mating or un-mating devices under load;Spring loaded safety shutter automatically ejects the plug eliminating contact teasing;Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit;Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust	Spring loaded safety shutter contains arcing when mating or un-mating devices under load;Spring loaded safety shutter automatically ejects the plug eliminating contact teasing;Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability;Insulated, color coded metallic housing enhances safety and abuse resistance	Spring loaded safety shutter contains arcing when mating or un-mating devices under load;Spring loaded safety shutter automatically ejects the plug eliminating contact teasing;Box terminals in conjunction with stainless steel screws provide maximum termination strength and dependability;Insulated, color coded metallic housing enhances safety and abuse resistance	—	Spring loaded safety shutter contains arcing when mating or un-mating devices under load;Spring loaded safety shutter automatically ejects the plug eliminating contact teasing;Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependabilit;Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust	—
FV_Current / Amperage Rating	—	—	—	30 A	—	20 A
FV_Current/Amperage Rating Description	20 Amp /30 Amp	60 Amp	60 Amp	—	20 Amp /30 Amp	—
FV_Voltage Rating Description	250 VDC/600 VAC	600 VAC	600 VAC	—	250 VDC/600 VAC	250 V
Insulation	Insulated Body	Insulated Body	Insulated Body	Insulated Body	Insulated Body	Insulated Body
Item Type	20A/30A Connector	60A Connector	60A Connector	Tech-Spec Triple Gripper	20A/30A Connector	Standard
Material	Composite	Composite	Composite	Composite	Composite	Composite
Material - Mounting Hardware	Cord Mounted	Cord Mounted	Cord Mounted	Cord Mounted	Cord Mounted	Cord Mounted
NEMA Rating	—	—	—	L14-30R	—	6-20R
Number Of Conductors	5-Wire Grounding	4-Wire Grounding	5-Wire Grounding	4-Wire Grounding	4-Wire Grounding	3-Wire Grounding
Number Of Poles	4	3	4	3	3	2
OEM Brand Name	Hubbell Bryant	Hubbell Bryant	Hubbell Bryant	Hubbell Bryant	Hubbell Bryant	Hubbell Bryant
Product Name	25414	26418	26516	—	21414	—
Size	2.69 in x 2.69 in x 6.78 in	3.18 in x 3.18 in x 6.52 in	3.18 in x 3.18 in x 6.52 in	—	2.44 in x 2.44 in x 6.00 in	2.68 in x 1.53 in x 1.38 in
Temperature Rating	Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.	Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.	Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.	Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.	Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.	Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
Type	Connector Body	Connector Body	Connector Body	—	Connector Body	Connector Body
UPC	781786683952	781786584181	781786574168	781786110380	781786618602	781786174221
Voltage Rating	250 VDC/600 VAC	600 VAC	600 VAC	125/250 VAC	250 VDC/600 VAC	250 V
Voltage Rating Description	250 VDC/600 VAC	600 VAC	600 VAC	—	250 VDC/600 VAC	250 V
