$21.70 / EA
manufacturer discounts
learn about discounts
- $19.53 for $300.00+
- $18.60 for $500.00+
- $17.83 for $1,000.00+
In stock (4)

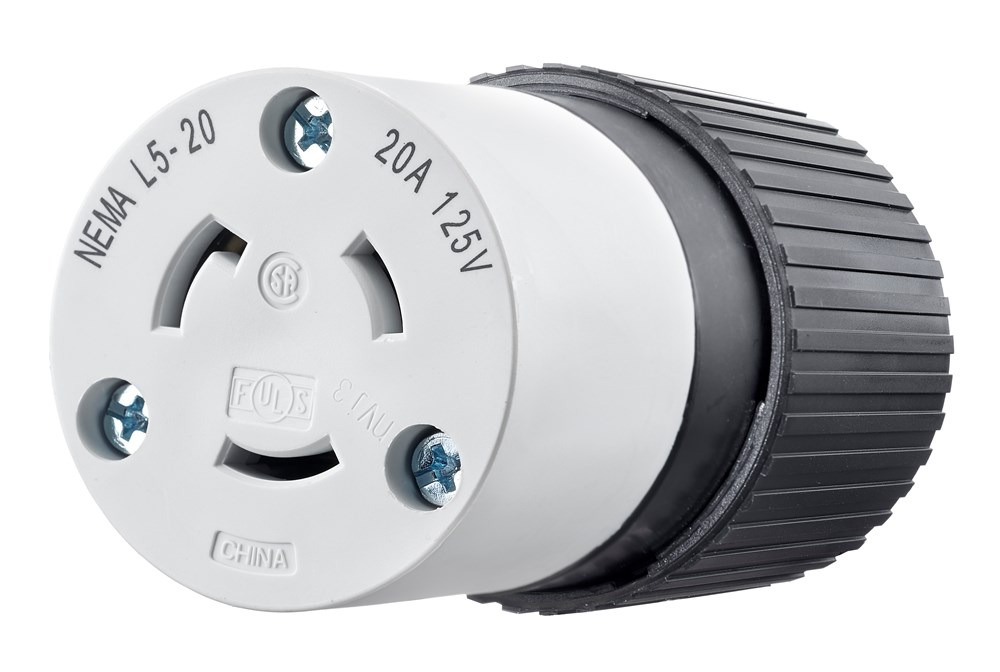

Locking Devices, Industrial, Female Nylon Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black/White
Locking Devices, Industrial, Female Nylon Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black/White
150
- UPC
- 781786688599
- UNSPSC
- 39121421
- Country of Origin
- CN
- Amperage Rating:
- 20 A
- Color:
- Black/White
- Material:
- Composite
- Number Of Poles:
- 2
- Type:
- Connector Body
- Voltage Rating:
- 125 V
- Amperage Rating:
- 20 A
- Brand ID:
- BRYANT
- Carton Quantity:
- 10
- Catalog Number:
- 70520NC
- Color:
- Black/White
- Conductor Range:
- #14 AWG to #12 AWG
- Cord Diameter:
- 0.300-0.655 in
- Current Rating:
- 20 A
- Description - Long:
- Locking Devices, Industrial, Female Nylon Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black/White
- Description - Short:
- Locking Devices, Industrial, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screw Terminal, Black and White
- EU RoHS Indicator:
- Yes
- Environmental Conditions:
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets:
- Face and body feature alignment keys for easy assembly;Amperage, voltage and NEMA configuration imprinted on face for easy identification;Impact/chemical resistant, toughened nylon construction;Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- FV_Current/Amperage Rating Description:
- 20 Amp
- FV_Voltage Rating Description:
- 125 V
- Insulation:
- Insulated Body
- Item Type:
- 20A Triple Gripper Nylon Connector
- Material:
- Composite
- Material - Mounting Hardware:
- Cord Mounted
- NEMA Rating:
- L5-20R
- Number Of Conductors:
- 3-Wire Grounding
- Number Of Poles:
- 2
- OEM Brand Name:
- Hubbell Bryant
- Product Name:
- 70520NC
- Temperature Rating:
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type:
- Connector Body
- UPC:
- 781786688599
- Voltage Rating:
- 125 V
- Voltage Rating Description:
- 125 V
