Products
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$369.38 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ 8560 3 Way Cold Shrink Cable Breakout Boot is made of a dark gray silicone rubber and protects the phase leg breakout of 3 way medium voltage power cables. It shields power cables from moisture, contamination, corrosion, ozone, UV radiation, physical contact and other hazards in associated environments. It allows quick installation while accommodating a wide range of cables.
3M™ 8560 3 Way Cold Shrink Cable Breakout Boot is made of a dark gray silicone rubber and protects the phase leg breakout of 3 way medium voltage power cables. It shields power cables from moisture, contamination, corrosion, ozone, UV radiation, physical contact and other hazards in associated environments. It allows quick installation while accommodating a wide range of cables.
3M™ 8560 3 Way Cold Shrink Cable Breakout Boot features an open end and is factory expanded and moun...150
3M™ 8560 3 Way Cold Shrink Cable Breakout Boot features an open end and is factory expanded and mounted on a removable plastic core. When the supporting cores inside the boot are removed, this pre stretched boot shrinks to the pre determined diameter, creating an environmental enclosure for individual cable phase legs and the overall cable jacket. It can be used in conjunction with cold shrink silicone rubber termination assemblies and RJS Series rejacketing sleeves for shielded power cable terminating applications. It's compatible with cold shrink silicone rubber termination products and RJS Series phase rejacketing sleeves. RoHS 2011/65/EU Compliant.
- Ensures excellent insulation and void-free sealing of cable breakouts
- High dry- and wet-insulation resistance
- Creates an environmental enclosure for individual cable phases
- Has an outer jacket diameter range of 1.3 to 1.94 inches
- Ensures excellent insulation and void-free sealing of cable breakouts
- High dry- and wet-insulation resistance
- Creates an environmental enclosure for individual cable phases
- Has an outer jacket diameter range of 1.3 to 1.94 inches
- UPC
- 051128571743
- UNSPSC
- 26121648
- Country of Origin
- CHN
3M™ 8560 3 Way Cold Shrink Cable Breakout Boot is made of a dark gray silicone rubber and protects the phase leg breakout of 3 way medium voltage power cables. It shields power cables from moisture, c...
$369.38 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$827.48 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT II 5800 Pb Series Termination Kit includes a 4 skirt, 1 conductor termination. It ensures a pliable, tight seal for oil/paper insulated, lead covered power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
3M™ Cold Shrink QT II 5800 Pb Series Termination Kit includes a 4 skirt, 1 conductor termination. It ensures a pliable, tight seal for oil/paper insulated, lead covered power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
150
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Withstands voltages up to 15kV and is 110 kV BIL-rated
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Withstands voltages up to 15kV and is 110 kV BIL-rated
- UPC
- 054007504603
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-II
- Voltage Rating:
- 892.857/15,000 V
- BIL:
- 150 kV
- Cable Insulation Outside Diameter Range:
- 0.71-1.01 in
- Cable Type:
- Paper Insulated Lead Covered (PILC)
- Conductor Size:
- 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 4/0 AWG
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 20.25 in
- Number Of Terminals:
- 1
- Number of Skirts:
- 6
- Standard:
- IEEE
- Type:
- QT-II
- Voltage Rating:
- 892.857/15,000 V
3M™ Cold Shrink QT II 5800 Pb Series Termination Kit includes a 4 skirt, 1 conductor termination. It ensures a pliable, tight seal for oil/paper insulated, lead covered power cables. The conjunction o...
$827.48 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$1,044.39 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT III 7640 S & 7650 S Series Termination Kit includes a skirted termination with a jumper wire top insulator. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 25/28 kV.
3M™ Cold Shrink QT III 7640 S & 7650 S Series Termination Kit includes a skirted termination with a jumper wire top insulator. It ensures a pliable, tight seal for jacketed concentric neutral and concentric neutral power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 25/28 kV.
150
- UPC
- 051138983956
- UNSPSC
- 26121648
- Country of Origin
- USA
3M™ Cold Shrink QT III 7640 S & 7650 S Series Termination Kit includes a skirted termination with a jumper wire top insulator. It ensures a pliable, tight seal for jacketed concentric neutral and conc...
$1,044.39 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$2,066.03 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

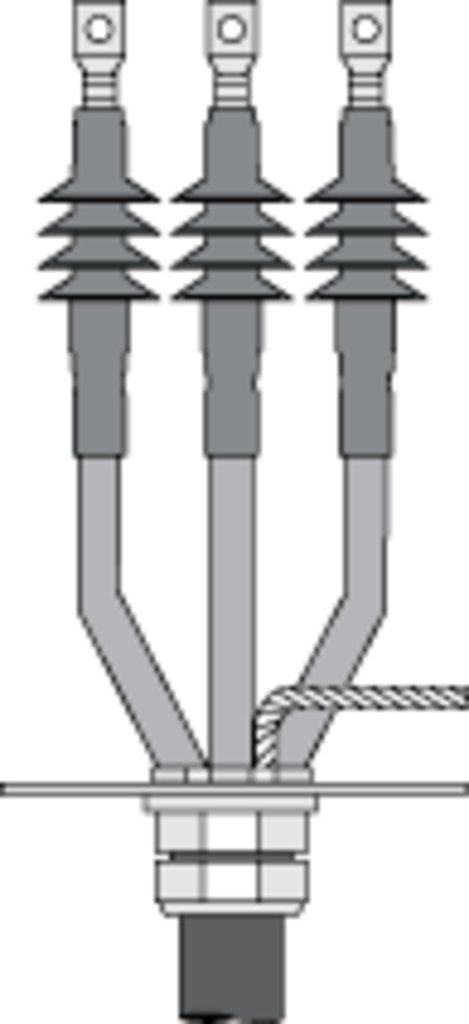

3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications and cabinet-mount installations
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications and cabinet-mount installations
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- UPC
- 054007047285
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000 V
- BIL:
- 150 kV
- Cable Insulation Outside Diameter Range:
- 1.18-1.52 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 1000 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 12.25 in
- Number Of Terminals:
- 3
- Number of Skirts:
- 4
- Standard:
- AEIC; IEC; JIS
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000 V
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjun...
$2,066.03 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$161.52 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
150
- One-piece cold shrink termination.
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor, weather exposed applications
- Silicone rubber insulation is track-resistance and hydrophobic
- One-piece cold shrink termination.
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor, weather exposed applications
- Silicone rubber insulation is track-resistance and hydrophobic
- UPC
- 054007119654
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-II
- Voltage Rating:
- 15,000 V
- Additional Kit Contents:
- (1) SC0001 Stem Connector
- BIL:
- 110 kV
- Cable Insulation Outside Diameter Range:
- 0.64-1.12 in
- Cable Type:
- Jacketed Concentric Neutral (JCN)
- Conductor Size:
- 2 AWG
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- Yes
- Maximum Installed Length:
- 10.00 in
- Number Of Terminals:
- 1
- Number of Skirts:
- 4
- Standard:
- IEEE
- Type:
- QT-II
- Voltage Rating:
- 15,000 V
3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high...
$161.52 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$502.18 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT III 7650 S HSG & 7660 S HSG Series Termination Kit includes a single phase, high fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire over tape shield power cables. The conjunction of high dielectric constant material and silicone sealing compounds allow the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7650 S HSG & 7660 S HSG Series Termination Kit includes a single phase, high fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugated shield and wire over tape shield power cables. The conjunction of high dielectric constant material and silicone sealing compounds allow the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, longitudinally corrugated shield and wire-over-tape shield power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Unique step-core design and silicone sealing compounds enable easier installation
- Provides a void-free seal to tape shield, longitudinally corrugated shield and wire-over-tape shield power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Unique step-core design and silicone sealing compounds enable easier installation
- UPC
- 054007433934
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000 V
- BIL:
- 150 kV
- Cable Insulation Outside Diameter Range:
- 1.05-1.80 in
- Cable Type:
- Longitudinally Corrugated (LC); Tape Shield; Wire-Over-Tape Shield
- Conductor Size:
- 1000 kcmil; 1250 kcmil; 1500 kcmil; 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 12.25 in
- Number Of Terminals:
- 1
- Number of Skirts:
- 4
- Standard:
- IEEE
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000 V
3M™ Cold Shrink QT III 7650 S HSG & 7660 S HSG Series Termination Kit includes a single phase, high fault current termination. It ensures a pliable, tight seal for tape shield, longitudinally corrugat...
$502.18 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$478.34 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

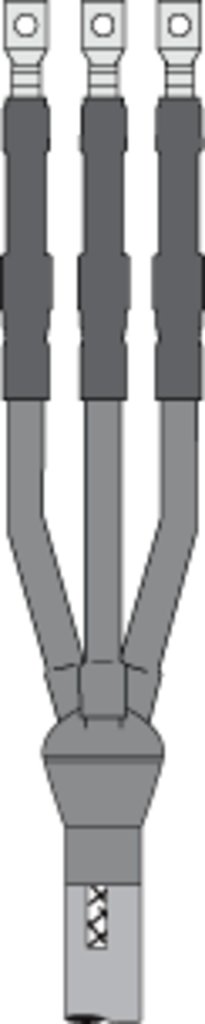

3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.
3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.
Each kit contains sufficient quantities of material to make three single-phase terminations. The ter...150
Each kit contains sufficient quantities of material to make three single-phase terminations. The termination assemblies consist of a tubular insulator, high dielectric constant (Hi-K) stress control tube, conformable Hi-K stress controlling compound, and built-in environmental top seal. The insulator is made of a dark gray silicone rubber with advanced tracking resistant and hydrophobic properties. Note:Lugs need to be ordered separately. Exceptions:For T-150 Kits, 150 kV impulse level meets the impulse requirements for 35 kV class equipment where indoor terminations are used. 7620-T Kits are designed and assembled with stress controlling compound only.
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Non-tracking, molded, silicone rubber insulation offers durability
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Non-tracking, molded, silicone rubber insulation offers durability
- UPC
- 054007417590
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000 V
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 3/0 AWG; 4 AWG
- Number Of Terminals:
- 1
- Standard:
- IEEE
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000 V
3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-pro...
$478.34 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,489.01 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications and cabinet-mount installations
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications and cabinet-mount installations
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- UPC
- 054007047261
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000 V
- BIL:
- 150 kV
- Cable Insulation Outside Diameter Range:
- 0.70-0.92 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 1/0 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 12.25 in
- Number Of Terminals:
- 3
- Number of Skirts:
- 4
- Standard:
- AEIC; IEC; JIS
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000 V
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjun...
$1,489.01 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
