$691.91 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

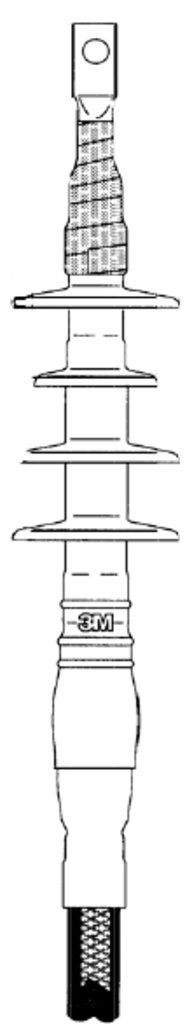

3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.
3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-protected applications. The kits are designed for terminating solid dielectric shielded power cable rated 5–35 kV, with tape shield, wire shield and UniShield® constructions.
Each kit contains sufficient quantities of material to make three single-phase terminations. The ter...150
Each kit contains sufficient quantities of material to make three single-phase terminations. The termination assemblies consist of a tubular insulator, high dielectric constant (Hi-K) stress control tube, conformable Hi-K stress controlling compound, and built-in environmental top seal. The insulator is made of a dark gray silicone rubber with advanced tracking resistant and hydrophobic properties. Note:Lugs need to be ordered separately. Exceptions:For T-150 Kits, 150 kV impulse level meets the impulse requirements for 35 kV class equipment where indoor terminations are used. 7620-T Kits are designed and assembled with stress controlling compound only.
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Non-tracking, molded, silicone rubber insulation offers durability
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Non-tracking, molded, silicone rubber insulation offers durability
- UPC
- 051128574850
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000 V
- BIL:
- 95 kV
- Cable Insulation Outside Diameter Range:
- 1.05-1.80 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 1000 kcmil; 1250 kcmil; 1500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 8.50 in
- Number Of Terminals:
- 1
- Standard:
- IEEE
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000 V
3M™ Cold Shrink QT-III Silicone Rubber Termination Kit 7620-T and 7690-T Series contains one-piece, non-skirted, silicone rubber terminations, meets IEEE Standard 48 Class 1 for indoor and weather-pro...
$691.91 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,533.12 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

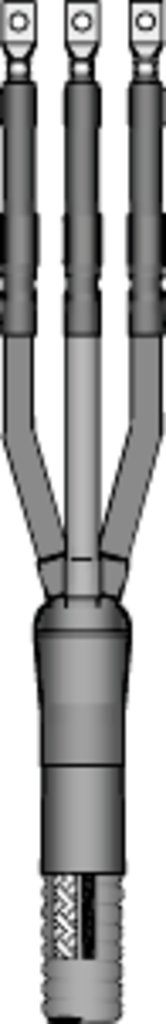

3M™ Cold Shrink QT III 7600 T 3G Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The silicone rubber sealing compounds allow the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7600 T 3G Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The silicone rubber sealing compounds allow the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- UPC
- 054007436713
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000/15,000 V
- BIL:
- 110 kV
- Cable Insulation Outside Diameter Range:
- 0.92-1.18 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 12.00 in
- Number Of Terminals:
- 3
- Standard:
- IEEE
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000/15,000 V
3M™ Cold Shrink QT III 7600 T 3G Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The sili...
$1,533.12 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,485.64 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT III 7600 T 3W Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7600 T 3W Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications and cabinet-mount installations
- Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor applications and cabinet-mount installations
- Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure
- UPC
- 054007047384
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000/15,000 V
- BIL:
- 110 kV
- Cable Insulation Outside Diameter Range:
- 0.92-1.18 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 250 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 12.00 in
- Number Of Terminals:
- 3
- Standard:
- AEIC; IEC; JIS
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000/15,000 V
3M™ Cold Shrink QT III 7600 T 3W Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conj...
$1,485.64 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,264.06 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications and cabinet-mount installations
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications and cabinet-mount installations
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- UPC
- 054007047254
- UNSPSC
- 26121648
- Country of Origin
- USA
- Voltage Rating:
- 3,300 to 15,000 V
- Cable Type:
- Wire and Unshielded
- Conductor Size:
- .05-.07
- Number Of Terminals:
- 3
- Type Of Terminations:
- Cold Shrink
- Voltage Rating:
- 3,300 to 15,000 V
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjun...
$1,264.06 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$307.28 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT III 7640 T HSG & 7650 T HSG Series Termination Kit includes a non skirted, 1 piece termination. It ensures a pliable, tight seal for tape shield, wire over tape shield and longitudinally corrugated shield power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7640 T HSG & 7650 T HSG Series Termination Kit includes a non skirted, 1 piece termination. It ensures a pliable, tight seal for tape shield, wire over tape shield and longitudinally corrugated shield power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire-over-tape shield and longitudinally corrugated shield power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor and high-ampacity ground applications
- Molded, silicone rubber insulation offers durability and provides constant radial pressure
- Provides a void-free seal to tape shield, wire-over-tape shield and longitudinally corrugated shield power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for indoor and high-ampacity ground applications
- Molded, silicone rubber insulation offers durability and provides constant radial pressure
- UPC
- 054007417750
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000/35,000 V
- BIL:
- 150 kV
- Cable Insulation Outside Diameter Range:
- 1.05-1.80 in
- Cable Type:
- Longitudinally Corrugated (LC); Tape Shield; Wire-Over-Tape Shield
- Conductor Size:
- 1000 kcmil; 1250 kcmil; 1500 kcmil; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 16.00 in
- Number Of Terminals:
- 1
- Standard:
- IEEE
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000/35,000 V
3M™ Cold Shrink QT III 7640 T HSG & 7650 T HSG Series Termination Kit includes a non skirted, 1 piece termination. It ensures a pliable, tight seal for tape shield, wire over tape shield and longitudi...
$307.28 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$783.65 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT II 5800 Pb Series Termination Kit includes a 4 skirt, 1 conductor termination. It ensures a pliable, tight seal for oil/paper insulated, lead covered power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
3M™ Cold Shrink QT II 5800 Pb Series Termination Kit includes a 4 skirt, 1 conductor termination. It ensures a pliable, tight seal for oil/paper insulated, lead covered power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
150
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Withstands voltages up to 15kV and is 110 kV BIL-rated
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Molded, silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Withstands voltages up to 15kV and is 110 kV BIL-rated
- UPC
- 054007504580
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-II
- Voltage Rating:
- 15,000 V
- BIL:
- 110 kV
- Cable Insulation Outside Diameter Range:
- 0.94-1.36 in
- Cable Type:
- Paper Insulated Lead Covered (PILC)
- Conductor Size:
- 500 kcmil
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- OS-0500 (2-Hole)
- Maximum Installed Length:
- 18.25 in
- Number Of Terminals:
- 1
- Number of Skirts:
- 4
- Standard:
- IEEE
- Type:
- QT-II
- Voltage Rating:
- 15,000 V
3M™ Cold Shrink QT II 5800 Pb Series Termination Kit includes a 4 skirt, 1 conductor termination. It ensures a pliable, tight seal for oil/paper insulated, lead covered power cables. The conjunction o...
$783.65 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,535.29 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
- UPC
- 054007424659
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000/35,000 V
- BIL:
- 200 kV
- Cable Insulation Outside Diameter Range:
- 0.72-1.29 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 20.50 in
- Number Of Terminals:
- 1
- Number of Skirts:
- 8
- Standard:
- IEEE
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000/35,000 V
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield...
$1,535.29 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
$1,465.06 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
3M™ Cold Shrink QT III 7600 S 3G Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7600 S 3G Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
- UPC
- 054007436812
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000/15,000 V
- BIL:
- 110 kV
- Cable Insulation Outside Diameter Range:
- 0.70-0.92 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 9.80 in
- Number Of Terminals:
- 3
- Number of Skirts:
- 2
- Standard:
- IEEE
- Type:
- QT-III
- Voltage Rating:
- 5,000/8,000/15,000 V
3M™ Cold Shrink QT III 7600 S 3G Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunct...
$1,465.06 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders
